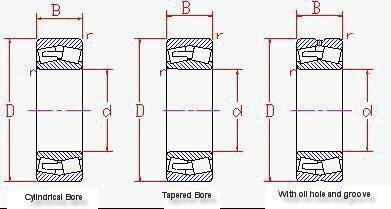

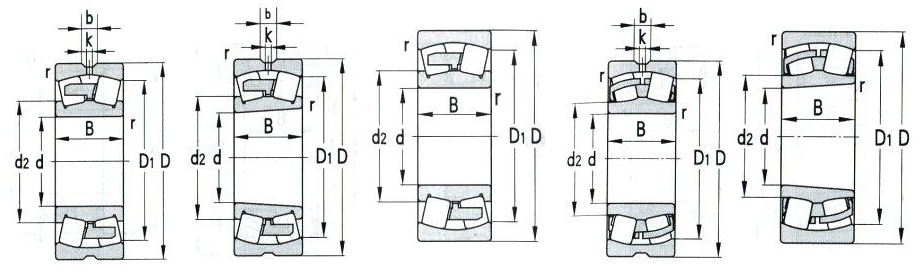

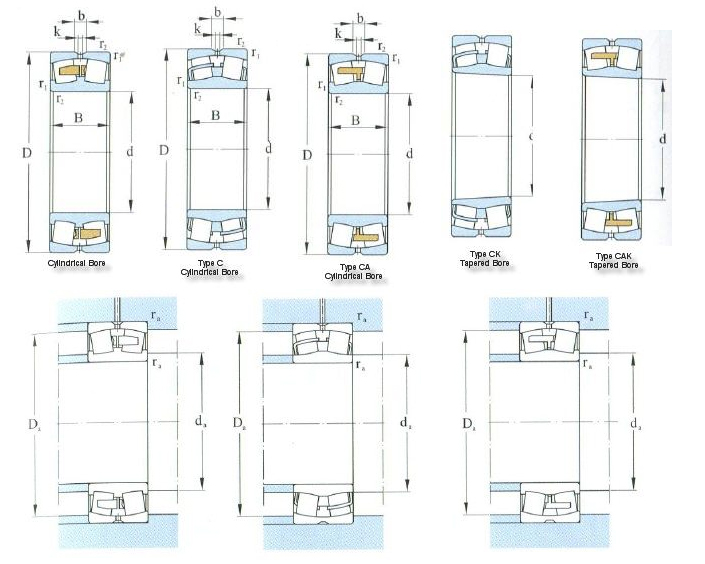

Boundary dimensions mm						Load rating kN		Limiting speed r/min		Bearing numbers		Mounting dimensions mm			Weight (reference) (Tapered bore) kg
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	da max	Da max	ra max	Weight (reference) (Tapered bore) kg
110	170	45.0	7.5	3	2.0	267.0	440.0	2200	3000	23022CAF3/W33	-	120	160	2.0	3.50
110	180	56.0	5.5	3	2.0	374.0	585.0	1900	2600	23122C/W33	23122CK/W33	120	170	2.0	5.55
110	180	56.0	-	-	2.0	374.0	585.0	1900	2600	23122CAF3	-	120	170	2.0	5.73
110	180	56.0	-	-	2.0	374.0	585.0	1900	2600	23122CA	-	120	170	2.0	5.73
110	180	56.0	5.5	3	2.0	374.0	585.0	1900	2600	23122CA/W33	23122CAK/W33	120	170	2.0	5.73
110	180	69.0	5.5	3	2.0	460.0	750.0	1000	1400	24122/W33	-	120	170	2.0	6.90
110	180	69.0	5.5	3	2.0	460.0	750.0	1000	1400	24122C/W33	24122CK30/W33	120	170	2.0	6.85
110	180	69.0	-	-	2.0	460.0	750.0	1000	1400	24122CA	-	120	170	2.0	6.92
110	180	69.0	5.5	3	2.0	460.0	750.0	1000	1400	24122CA/W33	24122CAK30/W33	120	170	2.0	6.92
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	22222	-	122	188	2.0	7.00
110	200	53.0	8.3	4.5	2.1	408.0	560.0	2000	2800	22222/W33	-	122	188	2.0	7.43
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	-	22222CK	122	188	2.0	7.43
110	200	53.0	8.3	4.5	2.1	408.0	560.0	2000	2800	22222C/W33	22222CK/W33	122	188	2.0	7.00
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	22222CA	-	122	188	2.0	7.43
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	22222CAF3	-	122	188	2.0	7.43
110	200	53.0	8.3	4.5	2.1	408.0	560.0	2000	2800	22222CA/W33	22222CAK/W33	122	188	2.0	7.43
110	200	69.8	5.5	3	2.1	518.0	765.0	1600	2000	23222C/W33	23222CK/W33	122	188	2.0	9.70
110	200	69.8	5.5	3	2.1	518.0	765.0	1600	2000	23222CA/W33	23222CAK/W33	122	188	2.0	10.1
110	200	69.8	-	-	2.1	518.0	765.0	1600	2000	23222CA	-	122	188	2.0	10.1
110	200	69.8	-	-	2.1	518.0	765.0	1600	2000	23222CAF3	-	122	188	2.0	10.1
110	200	69.8	5.5	3	2.1	518.0	765.0	1600	2000	23222CAF3/W33	-	122	188	2.0	10.1
110	240	50.0	-	-	3.0	460.0	630.0	1600	2000	21322C	21322CK	124	226	2.5	12.0
110	240	50.0	-	-	3.0	460.0	630.0	1600	2000	21322CA	21322CAK	124	226	2.5	13.0
110	240	80.0	-	-	3.0	725.0	965.0	1600	2000	22322	22322CK	124	226	2.5	18.9
110	240	80.0	13.9	7.5	3.0	725.0	965.0	1600	2000	22322C/W33	22322CK/W33	124	226	2.5	18.0
110	240	80.0	-	-	3.0	725.0	965.0	1600	2000	22322CA	22322CAK	124	226	2.5	18.9
110	240	80.0	13.9	7.5	3.0	725.0	965.0	1600	2000	22322CA/W33	22322CAK/W33	124	226	2.5	18.9
110	240	80.0	-	-	3.0	725.0	965.0	1600	2000	22322CAF3	22322CAKF3	124	226	2.5	18.9
120	180	46.0	-	-	2.0	305.0	510.0	2000	2800	23024	23024K	130	170	2.0	4.19
120	180	46.0	5.5	3	2.0	305.0	510.0	2000	2800	23024C/W33	23024CK/W33	130	170	2.0	4.20
120	180	46.0	-	-	2.0	305.0	510.0	2000	2800	-	23024CK	130	170	2.0	4.20
120	180	46.0	-	-	2.0	305.0	510.0	2000	2800	23024CA	23024CAK	130	170	2.0	4.44
120	180	46.0	5.5	3	2.0	305.0	510.0	2000	2800	23024CA/W33	23024CAK/W33	130	170	2.0	4.44
120	180	60.0	5.5	3	2.0	374.0	670.0	1600	2000	24024C/W33	24024CK30/W33	130	170	2.0	5.40
120	180	60.0	-	-	2.0	374.0	670.0	1600	2000	24024CA	-	130	170	2.0	5.83
120	180	60.0	5.5	3	2.0	374.0	670.0	1600	2000	24024CA/W33	24024CAK30/W33	130	170	2.0	5.83
120	200	62.0	5.5	3	2.0	449.0	695.0	1800	2400	23124C/W33	23124CK/W33	130	190	2.0	7.80
120	200	80.0	5.5	3	2.0	575.0	950.0	900	1200	24124C/W33	24124CK30/W33	130	190	2.0	10.0
120	200	80.0	-	-	2.0	575.0	950.0	900	1200	24124CA	-	130	190	2.0	10.6
120	200	80.0	5.5	3	2.0	575.0	950.0	900	1200	24124CA/W33	24124CAK30/W33	130	190	2.0	10.6
120	200	80.0	-	-	2.0	575.0	950.0	900	1200	24124CAF3	-	130	190	2.0	10.6
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224	22224K	132	203	2.0	8.70
120	215	58.0	11.1	6	2.1	466.0	670.0	1900	2600	22224C/W33	22224CK/W33	132	203	2.0	8.70
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224CA	22224CAK	132	203	2.0	9.76
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224CAF3	22224CAKF3	132	203	2.0	9.68
120	215	58.0	11.1	6	2.1	466.0	670.0	1900	2600	-	22224CAKF3/W33	132	203	2.0	9.68
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224CA/W33	22224CAK/W33	132	203	2.0	9.87
120	215	76.0	8.3	4.5	2.1	610.0	930.0	1500	1900	23224C/W33	23224CK/W33	132	203	2.0	12.0
120	215	76.0	-	-	2.1	610.0	930.0	1500	1900	23224CA	-	132	203	2.0	12.1
120	215	76.0	8.3	4.5	2.1	610.0	930.0	1500	1900	23224CA/W33	23224CAK/W33	132	203	2.0	12.1
120	215	76.0	8.3	4.5	2.1	610.0	930.0	1500	1900	23224CAF3/W33	23224CAKF3/W33	132	203	2.0	12.1
120	260	86.0	-	-	3.0	845.0	1120.0	1400	2800	22324	22324k	134	246	2.5	23.8
120	260	86.0	7.5	3	3.0	845.0	1120.0	1400	2800	22324C/W33	22324CK/W33	134	246	2.5	22.0
120	260	86.0	-	-	3.0	845.0	1120.0	1400	2800	22324CA	22324CAK	134	246	2.5	22.0
120	260	86.0	7.5	3	3.0	845.0	1120.0	1400	2800	22324CA/W33	22324CAK/W33	134	246	2.5	23.3
120	260	86.0	-	-	3.0	845.0	1120.0	1400	2800	22324CAF3	22324CAKF3	134	246	2.5	23.1
120	260	86.0	7.5	3	3.0	845.0	1120.0	1400	2800	-	22324CAKF3/W33	134	246	2.5	22.8
130	200	52.0	5.5	3	2.0	374.0	610.0	1900	2600	23026C/W33	23026CK/W33	140	190	2.0	6.10
130	200	52.0	-	-	2.0	374.0	610.0	1900	2600	23026CA	23026CAK	140	190	2.0	7.04
130	200	52.0	5.5	3	2.0	374.0	610.0	1900	2600	23026CA/W33	23026CAK/W33	140	190	2.0	7.04
130	200	52.0	-	-	2.0	374.0	610.0	1900	2600	23026CAF3	23026CAKF3	140	190	2.0	6.75
130	200	52.0	5.5	3	2.0	374.0	610.0	1900	2600	23026CAF3/W33	23026CAKF3/W33	140	190	2.0	6.75
130	200	69.0	5.5	3	2.0	477.0	815.0	1500	1900	24026C/W33	24026CK30/W33	140	190	2.0	7.95
130	200	69.0	5.5	3	2.0	477.0	815.0	1500	1900	24026CA/W33	24026CAK30/W33	140	190	2.0	8.28
130	210	64.0	8.3	4.5	2.0	489.0	780.0	1700	2200	23126C/W33	23126CK/W33	140	200	2.0	8.55
130	210	64.0	8.3	4.5	2.0	489.0	780.0	1700	2200	23126CA	23126CAKF3/W33	140	200	2.0	10.7
130	210	64.0	8.3	4.5	2.0	489.0	780.0	1700	2200	23126CA/W33	23126CAK/W33	140	200	2.0	10.7
130	210	80.0	-	4.5	2.0	587.0	1000	900	1200	24126C/W33	24126CK30/W33	140	200	2.0	11.0
130	210	80.0	8.3	4.5	2.0	587.0	1000	900	1200	24126CA/W33	24126CAK30/W33	140	200	2.0	12.0
130	230	64.0	11.1	6	3.0	546.0	800.0	1800	2400	22226/W33	-	144	216	2.5	11.0
130	230	64.0	11.1	6	3.0	546.0	800.0	1800	2400	22226C/W33	22226CK/W33	144	216	2.5	11.0
130	230	64.0	-	-	3.0	546.0	800.0	1800	2400	22226CA	22226CAK	144	216	2.5	12.4
130	230	64.0	11.1	6	3.0	546.0	800.0	1800	2400	22226CA/W33	22226CAK/W33	144	216	2.5	12.4
130	230	64.0	-	-	3.0	546.0	800.0	1800	2400	-	22226CAKF3	144	216	2.5	12.4
130	230	80.0	8.3	4.5	3.0	690.0	1060.0	1300	1700	23226C/W33	23226CK/W33	144	216	2.5	14.0
130	230	80.0	-	-	3.0	690.0	1060.0	1300	1700	23226CA	23226CAK	144	216	2.5	14.0
130	230	80.0	8.3	4.5	3.0	690.0	1060.0	1300	1700	23226CA/W33	-	144	216	2.5	14.0
130	230	80.0	-	-	3.0	690.0	1060.0	1300	1700	23226CAF3	23226CAKF3	144	216	2.5	14.0
130	230	80.0	12	5	3.0	690.0	1060.0	1300	1700	23226CAF3/W33	-	144	216	2.5	14.0
130	230	80.0	-	-	3.0	690.0	1060.0	1300	1700	23226CAF3/HAC9S0W20X	-	144	216	2.5	14.0
130	230	93.0	16.7	9	4.0	978.0	1320.0	1300	1700	22326C/W33	22326CK/W33	148	262	3.0	28.5
130	230	93.0	-	-	4.0	978.0	1320.0	1300	1700	22326CA	22326CAK	148	262	3.0	28.5
130	230	93.0	-	-	4.0	978.0	1320.0	1300	1700	22326CAF3	-	148	262	3.0	28.5
130	230	93.0	16.7	9	4.0	978.0	1320.0	1300	1700	22326CAF3/W33	-	148	262	3.0	28.5
130	230	93.0	16.7	9	4.0	978.0	1320.0	1300	1700	22326CA/W33	22326CAK/W33	148	262	3.0	18.3
130	230	93.0	-	-	4.0	978.0	1320.0	1300	1700	22326CAQ1/HA	-	148	262	3.0	18.3
140	210	53.0	8.3	4.5	2.0	397.0	680.0	1800	2400	23028C/W33	23028CK/W33	150	200	2.0	6.55
140	210	53.0	-	-	2.0	397.0	680.0	1800	2400	23028CA	23028CAK	150	200	2.0	6.55
140	210	53.0	-	-	2.0	397.0	680.0	1800	2400	23028CAF3	23028CAKF3	150	200	2.0	6.55
140	210	53.0	8.3	4.5	2.0	397.0	680.0	1800	2400	23028CA/W33	23028CAK/W33	150	200	2.0	6.70
140	210	69.0	5.5	3	2.0	495.0	900.0	1400	1800	24028C/W33	24028CK30/W33	150	200	2.0	8.45
140	210	69.0	5.5	3	2.0	495.0	900.0	1400	1800	24028CA/W33	24028CAK30/W33	150	200	2.0	8.65
140	225	68.0	8.3	4.5	2.1	546.0	900.0	1600	2000	23128C/W33	23128CK/W33	152	213	2.0	10.5
140	225	68.0	-	-	2.1	546.0	900.0	1600	2000	23128CA	-	152	213	2.0	10.9
140	225	68.0	8.3	4.5	2.1	546.0	900.0	1600	2000	23128CA/W33	23128CAK/W33	152	213	2.0	10.9
140	225	85.0	8.3	4.5	2.1	673.0	1160.0	850	1100	24128C/W33	24128CK/W33	152	213	2.0	13.0
140	225	85.0	8.3	4.5	2.1	673.0	1160.0	850	1100	24128CA	24128CAK30/W33	152	213	2.0	13.5
140	225	85.0	-	-	2.1	673.0	1160.0	850	1100	24128CAF3	-	152	213	2.0	13.5
140	225	85.0	8.3	4.5	2.1	673.0	1160.0	850	1100	24128CA/W33	24128CAK/W33	152	213	2.0	13.5
140	250	68.0	11.1	6	3.0	610.0	900.0	1700	2200	22228C/W33	22228CK/W33	154	236	2.5	14.0
140	250	68.0	-	-	3.0	610.0	900.0	1700	2200	22228CA	22228CAK	154	236	2.5	16.2
140	250	68.0	11.1	6	3.0	610.0	900.0	1700	2200	22228CA/W33	22228CAK/W33	154	236	2.5	16.2
140	250	68.0	-	-	3.0	610.0	900.0	1700	2200	22228CAF3	-	154	236	2.5	15.6
140	250	68.0	11.1	6	3.0	610.0	900.0	1700	2200	22228CAF3/W33	22228CAKF3/W33	154	236	2.5	15.6
140	250	88.0	11.1	6	3.0	799.0	1250.0	1200	1600	23228C/W33	23228CK/W33	154	236	2.5	18.5
140	250	88.0	11.1	6	3.0	799.0	1250.0	1200	1600	23228CA/W33	23228CAK/W33	154	236	2.5	19.7
140	250	88.0	11.1	6	3.0	799.0	1250.0	1200	1600	23228CAF3/W33	-	154	236	2.5	19.3
140	300	102.0	-	-	3.7	1130.0	1560.0	1100	1500	22328	-	-	-	-	-
140	300	102.0	16.7	9	4.0	1130.0	1560.0	1100	1500	22328C/W33	22328CK/W33	158	282	3.0	34.5
140	300	102.0	-	-	4.0	1130.0	1560.0	1100	1500	22328CA	22328CAK	158	282	3.0	36.2
140	300	102.0	16.7	9	4.0	1130.0	1560.0	1100	1500	22328CA/W33	22328CAK/W33	158	282	3.0	36.2
140	300	102.0	-	-	4.0	1130.0	1560.0	1100	1500	22328CAF3	-	158	282	3.0	36.2
140	300	102.0	-	-	4.0	1130.0	1560.0	1100	1500	22328CAQ1/HA	-	158	282	3.0	36.2
150	225	56.0	-	-	2.1	437.0	750.0	1700	2200	23030	23030K	162	213	2.0	7.44
150	225	56.0	8.3	4.5	2.1	437.0	750.0	1700	2200	23030C/W33	23030CK/W33	162	213	2.0	7.95
150	225	56.0	-	-	2.1	437.0	750.0	1700	2200	23030CA	-	162	213	2.0	8.01
150	225	56.0	-	-	2.1	437.0	750.0	1700	2200	23030CAF3	-	162	213	2.0	8.01
150	225	56.0	8.3	4.5	2.1	437.0	750.0	1700	2200	23030CA/W33	23030CAK/W33	162	213	2.0	8.01
150	225	75.0	5.5	3	2.1	564.0	1040.0	1300	1700	24030C/W33	24030CK30/W33	162	213	2.0	10.5
150	225	75.0	5.5	3	2.1	564.0	1040.0	1300	1700	24030CA/W33	24030CAK30/W33	162	213	2.0	9.39
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130/W33	-	162	238	2.0	16.0
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130C/W33	23130CK/W33	162	238	2.0	16.0
150	250	80.0	-	-	2.1	725.0	1200.0	1400	1800	23130CA	23130CAK	162	238	2.0	16.5
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130CA/W33	23130CAK/W33	162	238	2.0	16.5
150	250	80.0	-	-	2.1	725.0	1200.0	1400	1800	23130CAF3	-	162	238	2.0	16.5
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130CAF3/W33	23130CAKF3/W33	162	238	2.0	16.5
150	250	100.0	8.3	4.5	2.1	897.0	1530.0	800	1000	24130C/W33	24130CK30/W33	162	238	2.0	19.5
150	250	100.0	8.3	4.5	2.1	897.0	1530.0	800	1000	24130CA/W33	24130CAK30/W33	162	238	2.0	21.0
150	270	73.0	13.9	7.5	3.0	736.0	1080.0	1600	2000	22230/W33	-	164	256	2.5	18.0
150	270	73.0	13.9	7.5	3.0	736.0	1080.0	1600	2000	22230C/W33	22230CK/W33	164	256	2.5	18.0
150	270	73.0	-	-	3.0	736.0	1080.0	1600	2000	22230CA	22230CAK	164	256	2.5	18.0
150	270	73.0	-	-	3.0	736.0	1080.0	1600	2000	22230CAF3	-	164	256	2.5	18.0
150	270	73.0	13.9	7.5	3.0	736.0	1080.0	1600	2000	22230CA/W33	22230CAK/W33	164	256	2.5	18.7
150	270	96.0	-	-	3.0	937.0	1460.0	1100	1500	23230	-	164	256	2.5	24.0
150	270	96.0	11.1	6	3.0	937.0	1460.0	1100	1500	23230C/W33	23230CK/W33	164	256	2.5	24.0
150	270	96.0	-	-	3.0	937.0	1460.0	1100	1500	23230CA	-	164	256	2.5	24.0
110	170	45.0	7.5	3	2.0	267.0	440.0	2200	3000	23022CAF3/W33	-	120	160	2.0	3.50
110	180	56.0	5.5	3	2.0	374.0	585.0	1900	2600	23122C/W33	23122CK/W33	120	170	2.0	5.55
110	180	56.0	-	-	2.0	374.0	585.0	1900	2600	23122CAF3	-	120	170	2.0	5.73
110	180	56.0	-	-	2.0	374.0	585.0	1900	2600	23122CA	-	120	170	2.0	5.73
110	180	56.0	5.5	3	2.0	374.0	585.0	1900	2600	23122CA/W33	23122CAK/W33	120	170	2.0	5.73
110	180	69.0	5.5	3	2.0	460.0	750.0	1000	1400	24122/W33	-	120	170	2.0	6.90
110	180	69.0	5.5	3	2.0	460.0	750.0	1000	1400	24122C/W33	24122CK30/W33	120	170	2.0	6.85
110	180	69.0	-	-	2.0	460.0	750.0	1000	1400	24122CA	-	120	170	2.0	6.92
110	180	69.0	5.5	3	2.0	460.0	750.0	1000	1400	24122CA/W33	24122CAK30/W33	120	170	2.0	6.92
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	22222	-	122	188	2.0	7.00
110	200	53.0	8.3	4.5	2.1	408.0	560.0	2000	2800	22222/W33	-	122	188	2.0	7.43
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	-	22222CK	122	188	2.0	7.43
110	200	53.0	8.3	4.5	2.1	408.0	560.0	2000	2800	22222C/W33	22222CK/W33	122	188	2.0	7.00
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	22222CA	-	122	188	2.0	7.43
110	200	53.0	-	-	2.1	408.0	560.0	2000	2800	22222CAF3	-	122	188	2.0	7.43
110	200	53.0	8.3	4.5	2.1	408.0	560.0	2000	2800	22222CA/W33	22222CAK/W33	122	188	2.0	7.43
110	200	69.8	5.5	3	2.1	518.0	765.0	1600	2000	23222C/W33	23222CK/W33	122	188	2.0	9.70
110	200	69.8	5.5	3	2.1	518.0	765.0	1600	2000	23222CA/W33	23222CAK/W33	122	188	2.0	10.1
110	200	69.8	-	-	2.1	518.0	765.0	1600	2000	23222CA	-	122	188	2.0	10.1
110	200	69.8	-	-	2.1	518.0	765.0	1600	2000	23222CAF3	-	122	188	2.0	10.1
110	200	69.8	5.5	3	2.1	518.0	765.0	1600	2000	23222CAF3/W33	-	122	188	2.0	10.1
110	240	50.0	-	-	3.0	460.0	630.0	1600	2000	21322C	21322CK	124	226	2.5	12.0
110	240	50.0	-	-	3.0	460.0	630.0	1600	2000	21322CA	21322CAK	124	226	2.5	13.0
110	240	80.0	-	-	3.0	725.0	965.0	1600	2000	22322	22322CK	124	226	2.5	18.9
110	240	80.0	13.9	7.5	3.0	725.0	965.0	1600	2000	22322C/W33	22322CK/W33	124	226	2.5	18.0
110	240	80.0	-	-	3.0	725.0	965.0	1600	2000	22322CA	22322CAK	124	226	2.5	18.9
110	240	80.0	13.9	7.5	3.0	725.0	965.0	1600	2000	22322CA/W33	22322CAK/W33	124	226	2.5	18.9
110	240	80.0	-	-	3.0	725.0	965.0	1600	2000	22322CAF3	22322CAKF3	124	226	2.5	18.9
120	180	46.0	-	-	2.0	305.0	510.0	2000	2800	23024	23024K	130	170	2.0	4.19
120	180	46.0	5.5	3	2.0	305.0	510.0	2000	2800	23024C/W33	23024CK/W33	130	170	2.0	4.20
120	180	46.0	-	-	2.0	305.0	510.0	2000	2800	-	23024CK	130	170	2.0	4.20
120	180	46.0	-	-	2.0	305.0	510.0	2000	2800	23024CA	23024CAK	130	170	2.0	4.44
120	180	46.0	5.5	3	2.0	305.0	510.0	2000	2800	23024CA/W33	23024CAK/W33	130	170	2.0	4.44
120	180	60.0	5.5	3	2.0	374.0	670.0	1600	2000	24024C/W33	24024CK30/W33	130	170	2.0	5.40
120	180	60.0	-	-	2.0	374.0	670.0	1600	2000	24024CA	-	130	170	2.0	5.83
120	180	60.0	5.5	3	2.0	374.0	670.0	1600	2000	24024CA/W33	24024CAK30/W33	130	170	2.0	5.83
120	200	62.0	5.5	3	2.0	449.0	695.0	1800	2400	23124C/W33	23124CK/W33	130	190	2.0	7.80
120	200	80.0	5.5	3	2.0	575.0	950.0	900	1200	24124C/W33	24124CK30/W33	130	190	2.0	10.0
120	200	80.0	-	-	2.0	575.0	950.0	900	1200	24124CA	-	130	190	2.0	10.6
120	200	80.0	5.5	3	2.0	575.0	950.0	900	1200	24124CA/W33	24124CAK30/W33	130	190	2.0	10.6
120	200	80.0	-	-	2.0	575.0	950.0	900	1200	24124CAF3	-	130	190	2.0	10.6
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224	22224K	132	203	2.0	8.70
120	215	58.0	11.1	6	2.1	466.0	670.0	1900	2600	22224C/W33	22224CK/W33	132	203	2.0	8.70
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224CA	22224CAK	132	203	2.0	9.76
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224CAF3	22224CAKF3	132	203	2.0	9.68
120	215	58.0	11.1	6	2.1	466.0	670.0	1900	2600	-	22224CAKF3/W33	132	203	2.0	9.68
120	215	58.0	-	-	2.1	466.0	670.0	1900	2600	22224CA/W33	22224CAK/W33	132	203	2.0	9.87
120	215	76.0	8.3	4.5	2.1	610.0	930.0	1500	1900	23224C/W33	23224CK/W33	132	203	2.0	12.0
120	215	76.0	-	-	2.1	610.0	930.0	1500	1900	23224CA	-	132	203	2.0	12.1
120	215	76.0	8.3	4.5	2.1	610.0	930.0	1500	1900	23224CA/W33	23224CAK/W33	132	203	2.0	12.1
120	215	76.0	8.3	4.5	2.1	610.0	930.0	1500	1900	23224CAF3/W33	23224CAKF3/W33	132	203	2.0	12.1
120	260	86.0	-	-	3.0	845.0	1120.0	1400	2800	22324	22324k	134	246	2.5	23.8
120	260	86.0	7.5	3	3.0	845.0	1120.0	1400	2800	22324C/W33	22324CK/W33	134	246	2.5	22.0
120	260	86.0	-	-	3.0	845.0	1120.0	1400	2800	22324CA	22324CAK	134	246	2.5	22.0
120	260	86.0	7.5	3	3.0	845.0	1120.0	1400	2800	22324CA/W33	22324CAK/W33	134	246	2.5	23.3
120	260	86.0	-	-	3.0	845.0	1120.0	1400	2800	22324CAF3	22324CAKF3	134	246	2.5	23.1
120	260	86.0	7.5	3	3.0	845.0	1120.0	1400	2800	-	22324CAKF3/W33	134	246	2.5	22.8
130	200	52.0	5.5	3	2.0	374.0	610.0	1900	2600	23026C/W33	23026CK/W33	140	190	2.0	6.10
130	200	52.0	-	-	2.0	374.0	610.0	1900	2600	23026CA	23026CAK	140	190	2.0	7.04
130	200	52.0	5.5	3	2.0	374.0	610.0	1900	2600	23026CA/W33	23026CAK/W33	140	190	2.0	7.04
130	200	52.0	-	-	2.0	374.0	610.0	1900	2600	23026CAF3	23026CAKF3	140	190	2.0	6.75
130	200	52.0	5.5	3	2.0	374.0	610.0	1900	2600	23026CAF3/W33	23026CAKF3/W33	140	190	2.0	6.75
130	200	69.0	5.5	3	2.0	477.0	815.0	1500	1900	24026C/W33	24026CK30/W33	140	190	2.0	7.95
130	200	69.0	5.5	3	2.0	477.0	815.0	1500	1900	24026CA/W33	24026CAK30/W33	140	190	2.0	8.28
130	210	64.0	8.3	4.5	2.0	489.0	780.0	1700	2200	23126C/W33	23126CK/W33	140	200	2.0	8.55
130	210	64.0	8.3	4.5	2.0	489.0	780.0	1700	2200	23126CA	23126CAKF3/W33	140	200	2.0	10.7
130	210	64.0	8.3	4.5	2.0	489.0	780.0	1700	2200	23126CA/W33	23126CAK/W33	140	200	2.0	10.7
130	210	80.0	-	4.5	2.0	587.0	1000	900	1200	24126C/W33	24126CK30/W33	140	200	2.0	11.0
130	210	80.0	8.3	4.5	2.0	587.0	1000	900	1200	24126CA/W33	24126CAK30/W33	140	200	2.0	12.0
130	230	64.0	11.1	6	3.0	546.0	800.0	1800	2400	22226/W33	-	144	216	2.5	11.0
130	230	64.0	11.1	6	3.0	546.0	800.0	1800	2400	22226C/W33	22226CK/W33	144	216	2.5	11.0
130	230	64.0	-	-	3.0	546.0	800.0	1800	2400	22226CA	22226CAK	144	216	2.5	12.4
130	230	64.0	11.1	6	3.0	546.0	800.0	1800	2400	22226CA/W33	22226CAK/W33	144	216	2.5	12.4
130	230	64.0	-	-	3.0	546.0	800.0	1800	2400	-	22226CAKF3	144	216	2.5	12.4
130	230	80.0	8.3	4.5	3.0	690.0	1060.0	1300	1700	23226C/W33	23226CK/W33	144	216	2.5	14.0
130	230	80.0	-	-	3.0	690.0	1060.0	1300	1700	23226CA	23226CAK	144	216	2.5	14.0
130	230	80.0	8.3	4.5	3.0	690.0	1060.0	1300	1700	23226CA/W33	-	144	216	2.5	14.0
130	230	80.0	-	-	3.0	690.0	1060.0	1300	1700	23226CAF3	23226CAKF3	144	216	2.5	14.0
130	230	80.0	12	5	3.0	690.0	1060.0	1300	1700	23226CAF3/W33	-	144	216	2.5	14.0
130	230	80.0	-	-	3.0	690.0	1060.0	1300	1700	23226CAF3/HAC9S0W20X	-	144	216	2.5	14.0
130	230	93.0	16.7	9	4.0	978.0	1320.0	1300	1700	22326C/W33	22326CK/W33	148	262	3.0	28.5
130	230	93.0	-	-	4.0	978.0	1320.0	1300	1700	22326CA	22326CAK	148	262	3.0	28.5
130	230	93.0	-	-	4.0	978.0	1320.0	1300	1700	22326CAF3	-	148	262	3.0	28.5
130	230	93.0	16.7	9	4.0	978.0	1320.0	1300	1700	22326CAF3/W33	-	148	262	3.0	28.5
130	230	93.0	16.7	9	4.0	978.0	1320.0	1300	1700	22326CA/W33	22326CAK/W33	148	262	3.0	18.3
130	230	93.0	-	-	4.0	978.0	1320.0	1300	1700	22326CAQ1/HA	-	148	262	3.0	18.3
140	210	53.0	8.3	4.5	2.0	397.0	680.0	1800	2400	23028C/W33	23028CK/W33	150	200	2.0	6.55
140	210	53.0	-	-	2.0	397.0	680.0	1800	2400	23028CA	23028CAK	150	200	2.0	6.55
140	210	53.0	-	-	2.0	397.0	680.0	1800	2400	23028CAF3	23028CAKF3	150	200	2.0	6.55
140	210	53.0	8.3	4.5	2.0	397.0	680.0	1800	2400	23028CA/W33	23028CAK/W33	150	200	2.0	6.70
140	210	69.0	5.5	3	2.0	495.0	900.0	1400	1800	24028C/W33	24028CK30/W33	150	200	2.0	8.45
140	210	69.0	5.5	3	2.0	495.0	900.0	1400	1800	24028CA/W33	24028CAK30/W33	150	200	2.0	8.65
140	225	68.0	8.3	4.5	2.1	546.0	900.0	1600	2000	23128C/W33	23128CK/W33	152	213	2.0	10.5
140	225	68.0	-	-	2.1	546.0	900.0	1600	2000	23128CA	-	152	213	2.0	10.9
140	225	68.0	8.3	4.5	2.1	546.0	900.0	1600	2000	23128CA/W33	23128CAK/W33	152	213	2.0	10.9
140	225	85.0	8.3	4.5	2.1	673.0	1160.0	850	1100	24128C/W33	24128CK/W33	152	213	2.0	13.0
140	225	85.0	8.3	4.5	2.1	673.0	1160.0	850	1100	24128CA	24128CAK30/W33	152	213	2.0	13.5
140	225	85.0	-	-	2.1	673.0	1160.0	850	1100	24128CAF3	-	152	213	2.0	13.5
140	225	85.0	8.3	4.5	2.1	673.0	1160.0	850	1100	24128CA/W33	24128CAK/W33	152	213	2.0	13.5
140	250	68.0	11.1	6	3.0	610.0	900.0	1700	2200	22228C/W33	22228CK/W33	154	236	2.5	14.0
140	250	68.0	-	-	3.0	610.0	900.0	1700	2200	22228CA	22228CAK	154	236	2.5	16.2
140	250	68.0	11.1	6	3.0	610.0	900.0	1700	2200	22228CA/W33	22228CAK/W33	154	236	2.5	16.2
140	250	68.0	-	-	3.0	610.0	900.0	1700	2200	22228CAF3	-	154	236	2.5	15.6
140	250	68.0	11.1	6	3.0	610.0	900.0	1700	2200	22228CAF3/W33	22228CAKF3/W33	154	236	2.5	15.6
140	250	88.0	11.1	6	3.0	799.0	1250.0	1200	1600	23228C/W33	23228CK/W33	154	236	2.5	18.5
140	250	88.0	11.1	6	3.0	799.0	1250.0	1200	1600	23228CA/W33	23228CAK/W33	154	236	2.5	19.7
140	250	88.0	11.1	6	3.0	799.0	1250.0	1200	1600	23228CAF3/W33	-	154	236	2.5	19.3
140	300	102.0	-	-	3.7	1130.0	1560.0	1100	1500	22328	-	-	-	-	-
140	300	102.0	16.7	9	4.0	1130.0	1560.0	1100	1500	22328C/W33	22328CK/W33	158	282	3.0	34.5
140	300	102.0	-	-	4.0	1130.0	1560.0	1100	1500	22328CA	22328CAK	158	282	3.0	36.2
140	300	102.0	16.7	9	4.0	1130.0	1560.0	1100	1500	22328CA/W33	22328CAK/W33	158	282	3.0	36.2
140	300	102.0	-	-	4.0	1130.0	1560.0	1100	1500	22328CAF3	-	158	282	3.0	36.2
140	300	102.0	-	-	4.0	1130.0	1560.0	1100	1500	22328CAQ1/HA	-	158	282	3.0	36.2
150	225	56.0	-	-	2.1	437.0	750.0	1700	2200	23030	23030K	162	213	2.0	7.44
150	225	56.0	8.3	4.5	2.1	437.0	750.0	1700	2200	23030C/W33	23030CK/W33	162	213	2.0	7.95
150	225	56.0	-	-	2.1	437.0	750.0	1700	2200	23030CA	-	162	213	2.0	8.01
150	225	56.0	-	-	2.1	437.0	750.0	1700	2200	23030CAF3	-	162	213	2.0	8.01
150	225	56.0	8.3	4.5	2.1	437.0	750.0	1700	2200	23030CA/W33	23030CAK/W33	162	213	2.0	8.01
150	225	75.0	5.5	3	2.1	564.0	1040.0	1300	1700	24030C/W33	24030CK30/W33	162	213	2.0	10.5
150	225	75.0	5.5	3	2.1	564.0	1040.0	1300	1700	24030CA/W33	24030CAK30/W33	162	213	2.0	9.39
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130/W33	-	162	238	2.0	16.0
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130C/W33	23130CK/W33	162	238	2.0	16.0
150	250	80.0	-	-	2.1	725.0	1200.0	1400	1800	23130CA	23130CAK	162	238	2.0	16.5
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130CA/W33	23130CAK/W33	162	238	2.0	16.5
150	250	80.0	-	-	2.1	725.0	1200.0	1400	1800	23130CAF3	-	162	238	2.0	16.5
150	250	80.0	11.1	6	2.1	725.0	1200.0	1400	1800	23130CAF3/W33	23130CAKF3/W33	162	238	2.0	16.5
150	250	100.0	8.3	4.5	2.1	897.0	1530.0	800	1000	24130C/W33	24130CK30/W33	162	238	2.0	19.5
150	250	100.0	8.3	4.5	2.1	897.0	1530.0	800	1000	24130CA/W33	24130CAK30/W33	162	238	2.0	21.0
150	270	73.0	13.9	7.5	3.0	736.0	1080.0	1600	2000	22230/W33	-	164	256	2.5	18.0
150	270	73.0	13.9	7.5	3.0	736.0	1080.0	1600	2000	22230C/W33	22230CK/W33	164	256	2.5	18.0
150	270	73.0	-	-	3.0	736.0	1080.0	1600	2000	22230CA	22230CAK	164	256	2.5	18.0
150	270	73.0	-	-	3.0	736.0	1080.0	1600	2000	22230CAF3	-	164	256	2.5	18.0
150	270	73.0	13.9	7.5	3.0	736.0	1080.0	1600	2000	22230CA/W33	22230CAK/W33	164	256	2.5	18.7
150	270	96.0	-	-	3.0	937.0	1460.0	1100	1500	23230	-	164	256	2.5	24.0
150	270	96.0	11.1	6	3.0	937.0	1460.0	1100	1500	23230C/W33	23230CK/W33	164	256	2.5	24.0
150	270	96.0	-	-	3.0	937.0	1460.0	1100	1500	23230CA	-	164	256	2.5	24.0

Boundary dimensions mm						Load rating kN		Limiting speed r/min		Bearing numbers		Mounting dimensions mm			Weight (reference) (Tapered bore) kg
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	da max	Da max	ra max	Weight (reference) (Tapered bore) kg
150	270	96.0	11.1	6	3.0	937.0	1460.0	1100	1500	23230CA/W33	23230CAK/W33	164	256	2.5	26.6
150	320	108.0	16.7	9	4.0	1270.0	1760.0	1000	1400	22330C/W33	22330CK/W33	168	302	3.0	41.5
150	320	108.0	-	-	4.0	1270.0	1760.0	1000	1400	22330CA	22330CAK	168	302	3.0	42.7
150	320	108.0	16.7	9	4.0	1270.0	1760.0	1000	1400	22330CA/W33	22330CAK/W33	168	302	3.0	42.7
150	320	108.0	-	-	4.0	1270.0	1760.0	1000	1400	-	22330CAKF3	168	302	3.0	42.7
160	240	60.0	-	-	2.1	506.0	880.0	1700	2200	23032	23032K	172	228	2.0	8.86
160	240	60.0	11.1	6	2.1	506.0	880.0	1700	2200	23032C/W33	23032CK/W33	172	228	2.0	9.70
160	240	60.0	-	-	2.1	506.0	880.0	1700	2200	23032CA	-	172	228	2.0	10.0
160	240	60.0	11.1	6	2.1	506.0	880.0	1700	2200	23032CA/W33	23032CAK/W33	172	228	2.0	10.0
160	240	60.0	-	-	2.1	506.0	880.0	1700	2200	23032CAF3	-	172	228	2.0	9.97
160	240	80.0	8.3	4.5	2.1	656.0	1200.0	1100	1500	24032C/W33	24032CK30/W33	172	228	2.0	13.0
160	240	80.0	8.3	4.5	2.1	656.0	1200.0	1100	1500	24032CA/W33	24032CAK30/W33	172	228	2.0	13.2
160	240	80.0	8.3	4.5	2.1	656.0	1200.0	1100	1500	24032CAF3/W33	24032CAK30F3	172	228	2.0	13.2
160	240	80.0	8.3	4.5	2.1	656.0	1200.0	1100	1500	-	24032CAK30/W33	172	228	2.0	13.2
160	270	86.0	13.9	7.5	2.1	845.0	1370.0	1300	1700	23132C/W33	23132CK/W33	172	258	2.0	20.5
160	270	86.0	-	-	2.1	845.0	1370.0	1300	1700	23132CA	23132CAK	172	258	2.0	21.9
160	270	86.0	13.9	7.5	2.1	845.0	1370.0	1300	1700	23132CA/W33	23132CAK/W33	172	258	2.0	21.9
160	270	86.0	-	-	2.1	845.0	1370.0	1300	1700	23132CAF3	-	172	258	2.0	21.9
160	270	109.0	8.3	4.5	2.1	1040.0	1760.0	700	900	24132C/W33	24132CK30/W33	172	258	2.0	25.0
160	270	109.0	8.3	4.5	2.1	1040.0	1760.0	700	900	24132CA/W33	24132CAK30/W33	172	258	2.0	24.6
160	270	109.0	8.3	4.5	2.1	1040.0	1760.0	700	900	24132CA/W33X	-	172	258	2.0	24.6
160	270	109.0	-	-	2.1	1040.0	1760.0	700	900	24132CA/HAC9S0W20X	-	172	258	2.0	24.6
160	290	80.0	13.9	7.5	3.0	863.0	1290.0	1500	1900	22232C/W33	22232CK/W33	174	276	2.5	22.5
160	290	80.0	-	-	3.0	863.0	1290.0	1500	1900	22232CA	22232CAK	174	276	2.5	24.6
160	290	80.0	13.9	7.5	3.0	863.0	1290.0	1500	1900	22232CA/W33	22232CAK/W33	174	276	2.5	24.6
160	290	80.0	-	-	3.0	863.0	1290.0	1500	1900	22232CAF3	-	174	276	2.5	24.6
160	290	104.0	-	-	3.0	1070.0	1660.0	1000	1400	23232	-	174	276	2.5	30.0
160	290	104.0	13.9	7.5	3.0	1070.0	1660.0	1000	1400	23232/W33	-	174	276	2.5	30.2
160	290	104.0	13.9	7.5	3.0	1070.0	1660.0	1000	1400	23232C/W33	23232CK/W33	174	276	2.5	30.0
160	290	104.0	-	-	3.0	1070.0	1660.0	1000	1400	23232CA	23232CAK	174	276	2.5	30.2
160	290	104.0	13.9	7.5	3.0	1070.0	1660.0	1000	1400	23232CA/W33	23232CAK/W33	174	276	2.5	30.2
160	340	114.0	-	-	4.0	1380.0	1960.0	950	1300	22332	-	178	322	3.0	50.0
160	340	114.0	16.7	9	4.0	1380.0	1960.0	950	1300	22332C/W33	22332CK/W33	178	322	3.0	50.0
160	340	114.0	-	-	4.0	1380.0	1960.0	950	1300	22332CA	22332CAK	178	322	3.0	50.0
160	340	114.0	16.7	9	4.0	1380.0	1960.0	950	1300	22332CA/W33	22332CAK/W33	178	322	3.0	52.8
160	340	114.0	-	-	4.0	1380.0	1960.0	950	1300	22332CAF3	-	178	322	3.0	52.5
160	340	114.0	16.7	9	4.0	1380.0	1960.0	950	1300	22332CAF3/W33	22332CAKF3/W33	178	322	3.0	52.5
170	260	67.0	-	-	2.1	621.0	1060.0	1600	2000	23034	23034K	182	248	2.0	13.0
170	260	67.0	11.1	6	2.1	621.0	1060.0	1600	2000	23034C/W33	23034CK/W33	182	248	2.0	13.0
170	260	67.0	-	-	2.1	621.0	1060.0	1600	2000	23034CA	23034CAK	182	248	2.0	13.0
170	260	67.0	11.1	6	2.1	621.0	1060.0	1600	2000	23034CA/W33	23034CAK/W33	182	248	2.0	14.1
170	260	67.0	-	-	2.1	621.0	1060.0	1600	2000	23034CAF3	-	182	248	2.0	13.0
170	260	90.0	8.3	4.5	2.1	799.0	1460.0	1000	1400	24034C/W33	24034CK30/W33	182	248	2.0	17.5
170	260	90.0	8.3	4.5	2.1	799.0	1460.0	1000	1400	24034CA/W33	24034CAK30/W33	182	248	2.0	17.8
170	280	88.0	13.9	7.5	2.1	897.0	1500.0	1200	1600	23134C/W33	23134CK/W33	182	268	2.0	21.5
170	280	88.0	-	-	2.1	897.0	1500.0	1200	1600	23134CA	23134CAK	182	268	2.0	26.1
170	280	88.0	13.9	7.5	2.1	897.0	1500.0	1200	1600	23134CA/W33	23134CAK/W33	182	268	2.0	26.1
170	280	88.0	-	-	2.1	897.0	1500.0	1200	1600	-	23134CAKF3	182	268	2.0	24.6
170	280	109.0	8.3	5.0	2.1	1070.0	1860.0	670	850	24134CA/HCW33YA2	-	182	268	2.0	26.5
170	280	109.0	8.3	4.5	2.1	1070.0	1860.0	670	850	24134C/W33	24134CK30/W33	182	268	2.0	26.5
170	280	109.0	8.3	4.5	2.1	1070.0	1860.0	670	850	24134CA/W33	24134CAK30/W33	182	268	2.0	24.8
170	310	86.0	16.7	9	4.0	978.0	1460.0	1300	1700	22234C/W33	22234CK/W33	188	292	3.0	28.5
170	310	86.0	-	-	4.0	978.0	1460.0	1300	1700	22234CA	22234CAK	188	292	3.0	28.6
170	310	86.0	16.7	9	4.0	978.0	1460.0	1300	1700	22234CA/W33	22234CAK/W33	188	292	3.0	28.6
170	310	110.0	13.9	7.5	4.0	1220.0	1930.0	950	1300	23234C/W33	23234CK/W33	188	292	3.0	36.5
170	310	110.0	-	-	4.0	1220.0	1930.0	950	1300	23234CA	-	188	292	3.0	38.0
170	310	110.0	13.9	7.5	4.0	1220.0	1930.0	950	1300	23234CAF3/W33	-	188	292	3.0	38.0
170	310	110.0	13.9	7.5	4.0	1220.0	1930.0	950	1300	23234CA/W33	23234CAK/W33	188	292	3.0	38.0
170	360	120.0	-	-	4.0	1540.0	2160.0	950	1300	22334C/YA7	-	188	342	3.0	59.7
170	360	120.0	16.7	9	4.0	1540.0	2160.0	950	1300	22334C/W33	22334CK/W33	188	342	3.0	58.5
170	360	120.0	-	-	4.0	1540.0	2160.0	950	1300	22334CA	-	188	342	3.0	62.6
170	360	120.0	16.7	9	4.0	1540.0	2160.0	950	1300	22334CA/W33	22334CAK/W33	188	342	3.0	62.6
180	250	52.0	5.5	3	2.0	431.0	830.0	1700	2200	23936C/W33	23936CK/W33	190	240	2.0	8.20
180	250	52.0	5.5	3	2.0	431.0	830.0	1700	2200	23936CA/W33	23936CAK/W33	190	240	2.0	9.17
180	250	52.0	5.5	3	2.0	431.0	830.0	1700	2200	23936CAF3/W33	-	190	240	2.0	9.17
180	280	74.0	13.9	7.5	2.1	725.0	1250.0	1400	1800	23036C/W33	23036CK/W33	192	268	2.0	17.0
180	280	74.0	-	-	2.1	725.0	1250.0	1400	1800	23036CA	-	192	268	2.0	17.0
180	280	74.0	-	-	2.1	725.0	1250.0	1400	1800	23036CAF3	-	192	268	2.0	17.0
180	280	74.0	13.9	7.5	2.1	725.0	1250.0	1400	1800	23036CA/W33	23036CAK/W33	192	268	2.0	17.7
180	280	100.0	8.3	4.5	2.1	937.0	1730.0	950	1300	24036C/W33	24036CK30/W33	192	268	2.0	23.0
180	280	100.0	-	-	2.1	937.0	1730.0	950	1300	24036CA	-	192	268	2.0	26.6
180	280	100.0	8.3	4.5	2.1	937.0	1730.0	950	1300	24036CA/W33	24036CAK30/W33	192	268	2.0	26.6
180	280	100.0	8.3	4.5	2.1	937.0	1730.0	950	1300	24036CAF3/W33	24036CAK30F3/W33	192	268	2.0	26.6
180	300	96.0	13.9	7.5	3.0	1050.0	1760.0	1100	1500	23136C/W33	23136CK/W33	194	286	2.5	27.5
180	300	96.0	-	-	3.0	1050.0	1760.0	1100	1500	23136CA	23136CAK	194	286	2.5	27.1
180	300	96.0	13.9	7.5	3.0	1050.0	1760.0	1100	1500	23136CA/W33	23136CAK/W33	194	286	2.5	27.1
180	300	96.0	-	-	3.0	1050.0	1760.0	1100	1500	23136CAF3	-	194	286	2.5	27.1
180	300	118.0	11.1	6	3.0	1220.0	2160.0	630	800	24136C/W33	24136CK30/W33	194	286	2.5	33.5
180	300	118.0	-	-	3.0	1220.0	2160.0	630	800	24136CA	-	194	286	2.5	33.0
180	300	118.0	11.1	6	3.0	1220.0	2160.0	630	800	24136CA/W33	24136CAK30/W33	194	286	2.5	33.0
180	300	118.0	-	-	3.0	1220.0	2160.0	630	800	24136CAQ1	-	194	286	2.5	33.0
180	320	86.0	16.7	9	4.0	1010.0	1560.0	1300	1700	22236C/W33	22236CK/W33	198	302	3.0	29.5
180	320	86.0	-	-	4.0	1010.0	1560.0	1300	1700	22236CA	22236CAK	198	302	3.0	29.4
180	320	86.0	16.7	9	4.0	1010.0	1560.0	1300	1700	22236CA/W33	22236CAK/W33	198	302	3.0	29.4
180	320	86.0	-	-	4.0	1010.0	1560.0	1300	1700	22236CAF3	22236CAKF3	198	302	3.0	29.4
180	320	86.0	-	-	4.0	1010.0	1560.0	1300	1700	22236CAQ1	-	198	302	3.0	29.4
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236C/W33	23236CK/W33	198	302	3.0	39.0
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236CA	23236CAK/W33	198	302	3.0	29.4
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236CA/HCW33	-	198	302	3.0	29.4
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236CA/HCW33YA2	-	198	302	3.0	29.4
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236CAF3	23236CAKF3/W33	198	302	3.0	29.4
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236CAF3/W33	-	198	302	3.0	39.0
180	320	112.0	13.9	7.5	4.0	1290.0	2120.0	900	1200	23236CA/W33	23236CAK/W33	198	302	3.0	38.7
180	380	126.0	22.3	12	4.0	1730.0	2450.0	900	1200	22336C/W33	22336CK/W33	198	362	3.0	69.0
180	380	126.0	-	-	4.0	1730.0	2450.0	900	1200	22336CA	22336CAK	198	362	3.0	72.2
180	380	126.0	22.3	12	4.0	1730.0	2450.0	900	1200	22336CA/W33	22336CAK/W33	198	362	3.0	72.2
180	380	126.0	22.3	12	4.0	1730.0	2450.0	900	1200	22336CAF3/W33	-	198	362	3.0	72.2
190	260	52.0	5.5	3	2.0	414.0	800.0	1700	2200	23938C/W33	23938CK/W33	200	250	2.0	8.40
190	260	52.0	5.5	3	2.0	414.0	800.0	1700	2200	23938CA/W33	23938CAK/W33	200	250	2.0	9.20
190	290	75.0	-	-	2.1	753.0	1340.0	1300	1700	23038	-	202	278	2.0	18.0
190	290	75.0	13.9	7.5	2.1	753.0	1340.0	1300	1700	23038C/W33	23038CK/W33	202	278	2.0	18.0
190	290	75.0	13.9	7.5	2.1	753.0	1340.0	1300	1700	23038CA/W33	23038CAK/W33	202	278	2.0	17.3
190	290	75.0	-	-	2.1	753.0	1340.0	1300	1700	23038CAF3	-	202	278	2.0	18.0
190	290	100.0	8.3	4.5	2.1	978.0	1800.0	950	1300	24038C/W33	24038CK30/W33	202	278	2.0	24.0
190	290	100.0	-	-	2.1	978.0	1800.0	950	1300	24038CA	-	202	278	2.0	22.9
190	290	100.0	8.3	4.5	2.1	978.0	1800.0	950	1300	24038CA/W33	24038CAK30/W33	202	278	2.0	22.9
190	290	100.0	-	-	2.1	978.0	1800.0	950	1300	24038CAF3	-	202	278	2.0	22.9
190	320	104.0	13.9	7.5	3.0	1200.0	2080.0	1000	1400	23138C/W33	23138CK/W33	204	306	2.5	34.5
190	320	104.0	-	-	3.0	1200.0	2080.0	1000	1400	23138CA	-	204	306	2.5	34.3
190	320	104.0	13.9	7.5	3.0	1200.0	2080.0	1000	1400	23138CA/W33	23138CAK/W33	204	306	2.5	34.3
190	320	128.0	11.1	6	3.0	1400.0	2500.0	600	750	24138C/W33	24138CK30/W33	204	306	2.5	42.0
190	320	128.0	-	-	3.0	1400.0	2500.0	600	750	24138CA	-	204	306	2.5	41.9
190	320	128.0	11.1	6	3.0	1400.0	2500.0	600	750	24138CA/W33	24138CAK30/W33	204	306	2.5	41.9
190	320	128.0	11.1	6	3.0	1400.0	2500.0	600	750	24138CAF3	24138CAK30/W33	204	306	2.5	41.9
190	340	92.0	-	-	4.0	1110.0	1700.0	1200	1600	22238	-	208	322	3.0	37.4
190	340	92.0	16.7	9	4.0	1110.0	1700.0	1200	1600	22238/W33	-	208	322	3.0	37.4
190	340	92.0	16.7	9	4.0	1110.0	1700.0	1200	1600	22238C/W33	22238CK/W33	208	322	3.0	36.5
190	340	92.0	16.7	9	4.0	1110.0	1700.0	1200	1600	22238CA/W33	22238CAK/W33	208	322	3.0	37.4
190	340	92.0	-	-	4.0	1110.0	1700.0	1200	1600	-	22238CAK	208	322	3.0	37.4
190	340	120.0	-	-	4.0	1460.0	2400.0	850	1100	22238CAF3	22238CAKF3	208	322	3.0	47.5
190	340	120.0	16.7	9	4.0	1460.0	2400.0	850	1100	23238C/W33	23238CK/W33	208	322	3.0	47.5
190	340	120.0	-	-	4.0	1460.0	2400.0	850	1100	23238CA	-	208	322	3.0	44.8
190	340	120.0	16.7	9	4.0	1460.0	2400.0	850	1100	23238CA/W33	23238CAK/W33	208	322	3.0	44.8
190	400	132.0	-	-	5.0	1870.0	2650.0	850	1100	22338	-	212	378	4.0	80.8
190	400	132.0	22.3	12	5.0	1870.0	2650.0	850	1100	22338C/W33	22338CK/W33	212	378	4.0	80.0
190	400	132.0	-	-	5.0	1870.0	2650.0	850	1100	22338CA	-	212	378	4.0	82.2
190	400	132.0	22.3	12	5.0	1870.0	2650.0	850	1100	22338CA/W33	22338CAK/W33	212	378	4.0	82.2
190	400	132.0	-	-	5.0	1870.0	2650.0	850	1100	22338CAF3	-	212	378	4.0	82.2
200	280	60.0	8.3	4.5	2.1	546.0	1040.0	1600	2000	23940C/W33	23940CK/W33	212	268	2.0	11.5
200	280	60.0	8.3	4.5	2.1	546.0	1040.0	1600	2000	23940CA/W33	23940CAK/W33	212	268	2.0	12.1
200	280	60.0	8.3	4.5	2.1	546.0	1040.0	1600	2000	23940CAF3/W33	-	212	268	2.0	12.1
200	310	82.0	13.9	7.5	2.1	880.0	1530.0	1200	1600	23040C/W33	23040CK/W33	212	298	2.0	23.0
200	310	82.0	-	-	2.1	880.0	1530.0	1200	1600	23040CA	23040CAK	212	298	2.0	22.6
200	310	82.0	13.9	7.5	2.1	880.0	1530.0	1200	1600	23040CA/W33	23040CAK/W33	212	298	2.0	22.6

Boundary dimensions						Load rating		Limiting speed		Bearing numbers		Mounting dimensions			Weight
mm						kN		r/min				mm			(reference)
															(Tapered bore)
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	da	Da	ra	kg
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	max	max	max
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CK/30W33	212	298	2	30.5
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CAK30/W33	212	298	2	31.3
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CDK/W33	214	326	2.5	42.5
200	340	112	-	-	3	1380	2360	950	1300	23140CA	23140CAK	214	326	2.5	43.8
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CAK/W33	214	326	2.5	43.8
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CK30/W33	214	326	2.5	52
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CAK30/W33	214	326	2.5	52.1
200	360	98	-	-	4	1270	1930	1100	1500	22240	-	218	342	3	43.5
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CK/W33	218	342	3	43.5
200	360	98	-	-	4	1270	1930	1100	1500	22240CA	22240CAK	218	342	3	44.7
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CAK/W33	218	342	3	44.7
200	360	98	-	-	4	1270	1930	1100	1500	22240CAF3	22240CAKF3	218	342	3	44.7
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	23240CK/W33	218	342	3	57
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	22340CAK/W33	218	342	3	53.4
200	360	128	-	-	4	1610	2700	850	1100	-	23240CAK	218	342	3	53.4
200	420	138	22.3	12	5	2020	2900	850	1100	22340C/W33	22340CK/W33	222	398	4	92.5
200	420	138	-	-	5	2020	2900	850	1100	22340CA	22340CAK	222	398	4	97
200	420	138	22.3	12	5	2020	2900	850	1100	22340CA/W33	22340CAK/W33	222	398	4	97
200	420	138	-	-	5	2020	2900	850	1100	22340CAF3	-	222	398	4	97
200	420	165	-	-	5	2020	3500	750	950	23340CAF3	-	222	398	4	97
219.5	340	90	-	-	3	935	1900	1100	1500	23044CA/YA2	-	234	326	2.5	31.5
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23044C/W33	23944CK/W33	232	288	2	13
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23944C/W33	23944CAK/W33	232	288	2	13
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044C/W33	23044CDK/W33	234	326	2.5	30.5
220	340	90	-	-	3	1050	1860	1100	1500	23044CA	23044CAK	234	326	2.5	31.6
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044CA/W33	23044CAK/W33	234	326	2.5	31.6
220	340	90	-	-	3	1050	1860	1100	1500	-	23044CAKF3	234	326	2.5	31.6
220	340	118	11.1	6	3	1360	2600	850	1100	24044C/W33	24044CK30/W33	234	326	2.5	39.5
220	340	118	11.1	6	3	1360	2600	850	1100	24044CA/W33	24044CAK30/W33	234	326	2.5	39.1
220	340	118	-	-	3	1360	2600	850	1100	24044CAF3	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33X	-	234	326	2.5	39.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144C/W33	23144CK/W33	238	352	3	53
220	370	120	-	-	-	1580	2750	900	1200	23144CA	23144CAK	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/W33	23144CAK/W33	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/HG3W33	23144CAKF3/W33	238	352	3	54.6
220	370	150	11.1	6	4	1840	3350	500	630	24144C/W33	24144CK/W33	238	352	3	65
220	370	150	11.1	6	4	1840	3350	500	630	24144CA/W33	24144CAK/W33	238	352	3	-
220	400	108	16.7	9	4	1520	2360	950	1300	22244C/W33	22244CK/W33	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CA	22244CAK	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33X	-	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CAF3	-	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33	22244CAK/W33	238	382	3	63.5
220	460	145	22.3	12	5	2350	3450	750	950	22344C/W33	222344CK/W33	242	438	4	120
220	460	145	22.3	12	5	2350	3450	750	950	22344CA/W33	22344CAK/W334	242	438	4	123
220	400	144	16.7	8	4	1720	3200	750	950	23244CA/W33	23244CAK/W33	238	382	3	77.3
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948C/W33	23948CK/W33	252	308	2	14
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CA/W33	23948CAK/W33	252	308	2	15
240	320	60	-	-	2.1	564	1160	1300	1700	23948CAF3	-	252	308	2	15
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CAF3/W33	-	252	308	2	15
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048C/W33	23048CK/W33	254	346	2.5	33.5
240	360	92	-	-	3	1130	2080	1000	1400	23048CA	23048CAK	254	346	2.5	34.2
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048CA/W33	23048CAK/W33	254	346	2.5	34.2
240	360	92	-	-	3	1130	2080	1000	1400	23048CAQ1	-	254	346	2.5	34.2
240	360	118	11.1	6	3	1380	2700	800	1000	24048C/W33	24048CK/W33	254	346	2.5	42.5
240	360	118	-	-	3	1380	2700	800	1000	24048CA	24048CAK30	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33X	-	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33	24048CAK30/W33	254	346	2.5	46.5
240	400	128	16.7	9	4	1790	3200	850	1100	23148C/W33	23148CK/W33	258	382	3	65.5
240	400	128	-	-	4	1790	3200	850	1100	23148CA	-	258	382	3	68.2
240	400	128	16.7	9	4	1790	3200	850	1100	23148CA/W33	23148CAK/W33	258	382	3	68.2
240	400	160	11.1	6	4	2100	3900	480	600	24148C/W33	24148CK30/W33	258	382	3	80.5
240	400	160	11.1	6	4	2100	3900	480	600	24148CA	24148CAK30F3/W33	258	382	3	79
240	400	160	11.1	6	4	2100	3900	480	600	24148CA/W33	24148CAK30/W33	258	382	3	79
240	440	160	22.3	12	4	1910	3000	900	1200	22248C/W33	22248CK/W33	258	422	3	83
240	440	160	22.3	12	4	1910	3000	900	1200	22248CA/W33	22248CAK/W33	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/C9W33	-	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/W33	-	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248C/W33	23248CK/W33	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248CA/W33	23248CAK/W33	258	422	3	-
240	440	160	-	-	4	2530	4300	670	850	23248CAF3	-	258	422	3	-
241	360	92	-	-	3	985	2080	1000	1400	23048CAQ1/YA2	-	254	346	2.5	34
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952C/W33	23952CK/W33	272	348	2	24
260	360	75	-	-	2.1	880	1800	1100	1500	23952CA	-	272	348	2	21.6
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952CA/W33	23952CAK/W33	272	348	2	21.6
260	400	104	16.7	9	4	1400	2550	900	1200	23052C/W33	23052CK/W33	278	382	3	48.5
260	400	104	-	-	4	1400	2550	900	1200	23052CA	23052CAK	278	382	3	49.8
260	400	104	16.7	9	4	1400	2550	900	1200	23052CA/W33	23052CAK/W33	278	382	3	49.8
260	400	104	-	-	4	1400	2550	900	1200	23052CAF3	-	278	382	3	49.8
260	400	104	11.1	6	4	1760	3450	700	900	24052C/W33	24052CK/W33	278	382	3	64.5
260	400	104	11.1	6	4	1760	3450	700	900	24052CA/W33	24052CAK/W33	278	382	3	66.7
260	400	104	-	-	4	1760	3450	700	900	24052CAF3	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	24052CAF3/W33	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	-	24052CAK30/W33	278	382	3	66.7
260	440	144	16.7	9	4	2220	3900	800	1000	23152C/W33	23152CK/W33	278	422	3	90.5
260	440	144	-	-	-	2220	3900	800	1000	23152CA	23152CAK	278	422	3	88.9
260	440	144	16.7	9	4	2222	3900	800	1000	23152CA/W33	23152CAK/W33	278	422	3	88.9
260	440	144	16.7	9	4	2220	3900	800	1000	-	24152CK30/W33	278	422	3	88.9
260	440	180	13.9	7.5	4	2620	4800	430	530	24152C/W33	-	278	422	3	110
260	440	180	-	-	4	2620	4800	430	530	24152CA	22252CAK	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CA/W33	-	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CAF3/W33	23252CAK/W33	278	422	3	115
260	480	130	-	-	5	2280	3600	850	1100	22252CA	-	278	458	4	106
260	480	130	-	-	5	2280	3600	850	1100	22252CA/W33	-	282	458	4	106
260	480	174	22.3	8	5	2800	4750	630	800	23252CA/W33	23252CAK/W33	282	458	4	145
260	480	174	22.3	8	5	2800	4750	630	800	23252CAF3/W33	23252CAKT7W33	282	458	4	145
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
300	420	90	11.1	6	3	1200	2500	950	1300	23960C/W33	23960CK/W33	314	406	2.5	40.5
300	420	90	11.1	7	3	1200	2500	950	1300	23960CA/W33	23960CAK/W33	314	406	2.5	40.1
300	460	118	16.7	7	4	1610	3450	800	1000	23060CAF3/W33	-	318	442	3	74.9
300	460	118	-	-	4	1610	3450	800	1000	-	23060CAK	318	442	3	73.6
300	460	118	16.7	7	4	1610	3450	800	1000	-	23060CAK/W33	318	442	3	73.6
300	460	160	-	-	4	2020	2700	600	750	24060CA	-	318	442	3	99
300	460	160	13.9	7	4	2020	2700	600	750	24060CA/W33	-	318	442	3	99
300	500	160	-	-	5	2310	4750	670	850	23160CA	-	322	478	4	126
300	500	160	-	-	5	2310	4750	670	850	23160CAF3	23160CAKF3	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23160CAF3/C9W33	-	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23060CA/W33	23160CAK/W33	322	478	4	125
300	540	140	-	-	5	2310	4300	750	950	22260CA	-	322	518	4	138
300	540	140	-	-	5	2310	4300	750	950	22260CAF3	22260CAKF3	322	518	4	138
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CK/30W33	212	298	2	30.5
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CAK30/W33	212	298	2	31.3
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CDK/W33	214	326	2.5	42.5
200	340	112	-	-	3	1380	2360	950	1300	23140CA	23140CAK	214	326	2.5	43.8
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CAK/W33	214	326	2.5	43.8
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CK30/W33	214	326	2.5	52
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CAK30/W33	214	326	2.5	52.1
200	360	98	-	-	4	1270	1930	1100	1500	22240	-	218	342	3	43.5
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CK/W33	218	342	3	43.5
200	360	98	-	-	4	1270	1930	1100	1500	22240CA	22240CAK	218	342	3	44.7
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CAK/W33	218	342	3	44.7
200	360	98	-	-	4	1270	1930	1100	1500	22240CAF3	22240CAKF3	218	342	3	44.7
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	23240CK/W33	218	342	3	57
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	22340CAK/W33	218	342	3	53.4
200	360	128	-	-	4	1610	2700	850	1100	-	23240CAK	218	342	3	53.4
200	420	138	22.3	12	5	2020	2900	850	1100	22340C/W33	22340CK/W33	222	398	4	92.5
200	420	138	-	-	5	2020	2900	850	1100	22340CA	22340CAK	222	398	4	97
200	420	138	22.3	12	5	2020	2900	850	1100	22340CA/W33	22340CAK/W33	222	398	4	97
200	420	138	-	-	5	2020	2900	850	1100	22340CAF3	-	222	398	4	97
200	420	165	-	-	5	2020	3500	750	950	23340CAF3	-	222	398	4	97
219.5	340	90	-	-	3	935	1900	1100	1500	23044CA/YA2	-	234	326	2.5	31.5
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23044C/W33	23944CK/W33	232	288	2	13
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23944C/W33	23944CAK/W33	232	288	2	13
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044C/W33	23044CDK/W33	234	326	2.5	30.5
220	340	90	-	-	3	1050	1860	1100	1500	23044CA	23044CAK	234	326	2.5	31.6
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044CA/W33	23044CAK/W33	234	326	2.5	31.6
220	340	90	-	-	3	1050	1860	1100	1500	-	23044CAKF3	234	326	2.5	31.6
220	340	118	11.1	6	3	1360	2600	850	1100	24044C/W33	24044CK30/W33	234	326	2.5	39.5
220	340	118	11.1	6	3	1360	2600	850	1100	24044CA/W33	24044CAK30/W33	234	326	2.5	39.1
220	340	118	-	-	3	1360	2600	850	1100	24044CAF3	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33X	-	234	326	2.5	39.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144C/W33	23144CK/W33	238	352	3	53
220	370	120	-	-	-	1580	2750	900	1200	23144CA	23144CAK	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/W33	23144CAK/W33	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/HG3W33	23144CAKF3/W33	238	352	3	54.6
220	370	150	11.1	6	4	1840	3350	500	630	24144C/W33	24144CK/W33	238	352	3	65
220	370	150	11.1	6	4	1840	3350	500	630	24144CA/W33	24144CAK/W33	238	352	3	-
220	400	108	16.7	9	4	1520	2360	950	1300	22244C/W33	22244CK/W33	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CA	22244CAK	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33X	-	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CAF3	-	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33	22244CAK/W33	238	382	3	63.5
220	460	145	22.3	12	5	2350	3450	750	950	22344C/W33	222344CK/W33	242	438	4	120
220	460	145	22.3	12	5	2350	3450	750	950	22344CA/W33	22344CAK/W334	242	438	4	123
220	400	144	16.7	8	4	1720	3200	750	950	23244CA/W33	23244CAK/W33	238	382	3	77.3
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948C/W33	23948CK/W33	252	308	2	14
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CA/W33	23948CAK/W33	252	308	2	15
240	320	60	-	-	2.1	564	1160	1300	1700	23948CAF3	-	252	308	2	15
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CAF3/W33	-	252	308	2	15
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048C/W33	23048CK/W33	254	346	2.5	33.5
240	360	92	-	-	3	1130	2080	1000	1400	23048CA	23048CAK	254	346	2.5	34.2
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048CA/W33	23048CAK/W33	254	346	2.5	34.2
240	360	92	-	-	3	1130	2080	1000	1400	23048CAQ1	-	254	346	2.5	34.2
240	360	118	11.1	6	3	1380	2700	800	1000	24048C/W33	24048CK/W33	254	346	2.5	42.5
240	360	118	-	-	3	1380	2700	800	1000	24048CA	24048CAK30	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33X	-	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33	24048CAK30/W33	254	346	2.5	46.5
240	400	128	16.7	9	4	1790	3200	850	1100	23148C/W33	23148CK/W33	258	382	3	65.5
240	400	128	-	-	4	1790	3200	850	1100	23148CA	-	258	382	3	68.2
240	400	128	16.7	9	4	1790	3200	850	1100	23148CA/W33	23148CAK/W33	258	382	3	68.2
240	400	160	11.1	6	4	2100	3900	480	600	24148C/W33	24148CK30/W33	258	382	3	80.5
240	400	160	11.1	6	4	2100	3900	480	600	24148CA	24148CAK30F3/W33	258	382	3	79
240	400	160	11.1	6	4	2100	3900	480	600	24148CA/W33	24148CAK30/W33	258	382	3	79
240	440	160	22.3	12	4	1910	3000	900	1200	22248C/W33	22248CK/W33	258	422	3	83
240	440	160	22.3	12	4	1910	3000	900	1200	22248CA/W33	22248CAK/W33	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/C9W33	-	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/W33	-	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248C/W33	23248CK/W33	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248CA/W33	23248CAK/W33	258	422	3	-
240	440	160	-	-	4	2530	4300	670	850	23248CAF3	-	258	422	3	-
241	360	92	-	-	3	985	2080	1000	1400	23048CAQ1/YA2	-	254	346	2.5	34
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952C/W33	23952CK/W33	272	348	2	24
260	360	75	-	-	2.1	880	1800	1100	1500	23952CA	-	272	348	2	21.6
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952CA/W33	23952CAK/W33	272	348	2	21.6
260	400	104	16.7	9	4	1400	2550	900	1200	23052C/W33	23052CK/W33	278	382	3	48.5
260	400	104	-	-	4	1400	2550	900	1200	23052CA	23052CAK	278	382	3	49.8
260	400	104	16.7	9	4	1400	2550	900	1200	23052CA/W33	23052CAK/W33	278	382	3	49.8
260	400	104	-	-	4	1400	2550	900	1200	23052CAF3	-	278	382	3	49.8
260	400	104	11.1	6	4	1760	3450	700	900	24052C/W33	24052CK/W33	278	382	3	64.5
260	400	104	11.1	6	4	1760	3450	700	900	24052CA/W33	24052CAK/W33	278	382	3	66.7
260	400	104	-	-	4	1760	3450	700	900	24052CAF3	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	24052CAF3/W33	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	-	24052CAK30/W33	278	382	3	66.7
260	440	144	16.7	9	4	2220	3900	800	1000	23152C/W33	23152CK/W33	278	422	3	90.5
260	440	144	-	-	-	2220	3900	800	1000	23152CA	23152CAK	278	422	3	88.9
260	440	144	16.7	9	4	2222	3900	800	1000	23152CA/W33	23152CAK/W33	278	422	3	88.9
260	440	144	16.7	9	4	2220	3900	800	1000	-	24152CK30/W33	278	422	3	88.9
260	440	180	13.9	7.5	4	2620	4800	430	530	24152C/W33	-	278	422	3	110
260	440	180	-	-	4	2620	4800	430	530	24152CA	22252CAK	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CA/W33	-	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CAF3/W33	23252CAK/W33	278	422	3	115
260	480	130	-	-	5	2280	3600	850	1100	22252CA	-	278	458	4	106
260	480	130	-	-	5	2280	3600	850	1100	22252CA/W33	-	282	458	4	106
260	480	174	22.3	8	5	2800	4750	630	800	23252CA/W33	23252CAK/W33	282	458	4	145
260	480	174	22.3	8	5	2800	4750	630	800	23252CAF3/W33	23252CAKT7W33	282	458	4	145
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
300	420	90	11.1	6	3	1200	2500	950	1300	23960C/W33	23960CK/W33	314	406	2.5	40.5
300	420	90	11.1	7	3	1200	2500	950	1300	23960CA/W33	23960CAK/W33	314	406	2.5	40.1
300	460	118	16.7	7	4	1610	3450	800	1000	23060CAF3/W33	-	318	442	3	74.9
300	460	118	-	-	4	1610	3450	800	1000	-	23060CAK	318	442	3	73.6
300	460	118	16.7	7	4	1610	3450	800	1000	-	23060CAK/W33	318	442	3	73.6
300	460	160	-	-	4	2020	2700	600	750	24060CA	-	318	442	3	99
300	460	160	13.9	7	4	2020	2700	600	750	24060CA/W33	-	318	442	3	99
300	500	160	-	-	5	2310	4750	670	850	23160CA	-	322	478	4	126
300	500	160	-	-	5	2310	4750	670	850	23160CAF3	23160CAKF3	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23160CAF3/C9W33	-	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23060CA/W33	23160CAK/W33	322	478	4	125
300	540	140	-	-	5	2310	4300	750	950	22260CA	-	322	518	4	138
300	540	140	-	-	5	2310	4300	750	950	22260CAF3	22260CAKF3	322	518	4	138
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CK/30W33	212	298	2	30.5
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CAK30/W33	212	298	2	31.3
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CDK/W33	214	326	2.5	42.5
200	340	112	-	-	3	1380	2360	950	1300	23140CA	23140CAK	214	326	2.5	43.8
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CAK/W33	214	326	2.5	43.8
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CK30/W33	214	326	2.5	52
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CAK30/W33	214	326	2.5	52.1
200	360	98	-	-	4	1270	1930	1100	1500	22240	-	218	342	3	43.5
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CK/W33	218	342	3	43.5
200	360	98	-	-	4	1270	1930	1100	1500	22240CA	22240CAK	218	342	3	44.7
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CAK/W33	218	342	3	44.7
200	360	98	-	-	4	1270	1930	1100	1500	22240CAF3	22240CAKF3	218	342	3	44.7
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	23240CK/W33	218	342	3	57
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	22340CAK/W33	218	342	3	53.4
200	360	128	-	-	4	1610	2700	850	1100	-	23240CAK	218	342	3	53.4
200	420	138	22.3	12	5	2020	2900	850	1100	22340C/W33	22340CK/W33	222	398	4	92.5
200	420	138	-	-	5	2020	2900	850	1100	22340CA	22340CAK	222	398	4	97
200	420	138	22.3	12	5	2020	2900	850	1100	22340CA/W33	22340CAK/W33	222	398	4	97
200	420	138	-	-	5	2020	2900	850	1100	22340CAF3	-	222	398	4	97
200	420	165	-	-	5	2020	3500	750	950	23340CAF3	-	222	398	4	97
219.5	340	90	-	-	3	935	1900	1100	1500	23044CA/YA2	-	234	326	2.5	31.5
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23044C/W33	23944CK/W33	232	288	2	13
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23944C/W33	23944CAK/W33	232	288	2	13
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044C/W33	23044CDK/W33	234	326	2.5	30.5
220	340	90	-	-	3	1050	1860	1100	1500	23044CA	23044CAK	234	326	2.5	31.6
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044CA/W33	23044CAK/W33	234	326	2.5	31.6
220	340	90	-	-	3	1050	1860	1100	1500	-	23044CAKF3	234	326	2.5	31.6
220	340	118	11.1	6	3	1360	2600	850	1100	24044C/W33	24044CK30/W33	234	326	2.5	39.5
220	340	118	11.1	6	3	1360	2600	850	1100	24044CA/W33	24044CAK30/W33	234	326	2.5	39.1
220	340	118	-	-	3	1360	2600	850	1100	24044CAF3	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33X	-	234	326	2.5	39.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144C/W33	23144CK/W33	238	352	3	53
220	370	120	-	-	-	1580	2750	900	1200	23144CA	23144CAK	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/W33	23144CAK/W33	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/HG3W33	23144CAKF3/W33	238	352	3	54.6
220	370	150	11.1	6	4	1840	3350	500	630	24144C/W33	24144CK/W33	238	352	3	65
220	370	150	11.1	6	4	1840	3350	500	630	24144CA/W33	24144CAK/W33	238	352	3	-
220	400	108	16.7	9	4	1520	2360	950	1300	22244C/W33	22244CK/W33	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CA	22244CAK	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33X	-	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CAF3	-	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33	22244CAK/W33	238	382	3	63.5
220	460	145	22.3	12	5	2350	3450	750	950	22344C/W33	222344CK/W33	242	438	4	120
220	460	145	22.3	12	5	2350	3450	750	950	22344CA/W33	22344CAK/W334	242	438	4	123
220	400	144	16.7	8	4	1720	3200	750	950	23244CA/W33	23244CAK/W33	238	382	3	77.3
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948C/W33	23948CK/W33	252	308	2	14
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CA/W33	23948CAK/W33	252	308	2	15
240	320	60	-	-	2.1	564	1160	1300	1700	23948CAF3	-	252	308	2	15
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CAF3/W33	-	252	308	2	15
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048C/W33	23048CK/W33	254	346	2.5	33.5
240	360	92	-	-	3	1130	2080	1000	1400	23048CA	23048CAK	254	346	2.5	34.2
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048CA/W33	23048CAK/W33	254	346	2.5	34.2
240	360	92	-	-	3	1130	2080	1000	1400	23048CAQ1	-	254	346	2.5	34.2
240	360	118	11.1	6	3	1380	2700	800	1000	24048C/W33	24048CK/W33	254	346	2.5	42.5
240	360	118	-	-	3	1380	2700	800	1000	24048CA	24048CAK30	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33X	-	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33	24048CAK30/W33	254	346	2.5	46.5
240	400	128	16.7	9	4	1790	3200	850	1100	23148C/W33	23148CK/W33	258	382	3	65.5
240	400	128	-	-	4	1790	3200	850	1100	23148CA	-	258	382	3	68.2
240	400	128	16.7	9	4	1790	3200	850	1100	23148CA/W33	23148CAK/W33	258	382	3	68.2
240	400	160	11.1	6	4	2100	3900	480	600	24148C/W33	24148CK30/W33	258	382	3	80.5
240	400	160	11.1	6	4	2100	3900	480	600	24148CA	24148CAK30F3/W33	258	382	3	79
240	400	160	11.1	6	4	2100	3900	480	600	24148CA/W33	24148CAK30/W33	258	382	3	79
240	440	160	22.3	12	4	1910	3000	900	1200	22248C/W33	22248CK/W33	258	422	3	83
240	440	160	22.3	12	4	1910	3000	900	1200	22248CA/W33	22248CAK/W33	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/C9W33	-	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/W33	-	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248C/W33	23248CK/W33	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248CA/W33	23248CAK/W33	258	422	3	-
240	440	160	-	-	4	2530	4300	670	850	23248CAF3	-	258	422	3	-
241	360	92	-	-	3	985	2080	1000	1400	23048CAQ1/YA2	-	254	346	2.5	34
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952C/W33	23952CK/W33	272	348	2	24
260	360	75	-	-	2.1	880	1800	1100	1500	23952CA	-	272	348	2	21.6
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952CA/W33	23952CAK/W33	272	348	2	21.6
260	400	104	16.7	9	4	1400	2550	900	1200	23052C/W33	23052CK/W33	278	382	3	48.5
260	400	104	-	-	4	1400	2550	900	1200	23052CA	23052CAK	278	382	3	49.8
260	400	104	16.7	9	4	1400	2550	900	1200	23052CA/W33	23052CAK/W33	278	382	3	49.8
260	400	104	-	-	4	1400	2550	900	1200	23052CAF3	-	278	382	3	49.8
260	400	104	11.1	6	4	1760	3450	700	900	24052C/W33	24052CK/W33	278	382	3	64.5
260	400	104	11.1	6	4	1760	3450	700	900	24052CA/W33	24052CAK/W33	278	382	3	66.7
260	400	104	-	-	4	1760	3450	700	900	24052CAF3	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	24052CAF3/W33	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	-	24052CAK30/W33	278	382	3	66.7
260	440	144	16.7	9	4	2220	3900	800	1000	23152C/W33	23152CK/W33	278	422	3	90.5
260	440	144	-	-	-	2220	3900	800	1000	23152CA	23152CAK	278	422	3	88.9
260	440	144	16.7	9	4	2222	3900	800	1000	23152CA/W33	23152CAK/W33	278	422	3	88.9
260	440	144	16.7	9	4	2220	3900	800	1000	-	24152CK30/W33	278	422	3	88.9
260	440	180	13.9	7.5	4	2620	4800	430	530	24152C/W33	-	278	422	3	110
260	440	180	-	-	4	2620	4800	430	530	24152CA	22252CAK	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CA/W33	-	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CAF3/W33	23252CAK/W33	278	422	3	115
260	480	130	-	-	5	2280	3600	850	1100	22252CA	-	278	458	4	106
260	480	130	-	-	5	2280	3600	850	1100	22252CA/W33	-	282	458	4	106
260	480	174	22.3	8	5	2800	4750	630	800	23252CA/W33	23252CAK/W33	282	458	4	145
260	480	174	22.3	8	5	2800	4750	630	800	23252CAF3/W33	23252CAKT7W33	282	458	4	145
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
300	420	90	11.1	6	3	1200	2500	950	1300	23960C/W33	23960CK/W33	314	406	2.5	40.5
300	420	90	11.1	7	3	1200	2500	950	1300	23960CA/W33	23960CAK/W33	314	406	2.5	40.1
300	460	118	16.7	7	4	1610	3450	800	1000	23060CAF3/W33	-	318	442	3	74.9
300	460	118	-	-	4	1610	3450	800	1000	-	23060CAK	318	442	3	73.6
300	460	118	16.7	7	4	1610	3450	800	1000	-	23060CAK/W33	318	442	3	73.6
300	460	160	-	-	4	2020	2700	600	750	24060CA	-	318	442	3	99
300	460	160	13.9	7	4	2020	2700	600	750	24060CA/W33	-	318	442	3	99
300	500	160	-	-	5	2310	4750	670	850	23160CA	-	322	478	4	126
300	500	160	-	-	5	2310	4750	670	850	23160CAF3	23160CAKF3	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23160CAF3/C9W33	-	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23060CA/W33	23160CAK/W33	322	478	4	125
300	540	140	-	-	5	2310	4300	750	950	22260CA	-	322	518	4	138
300	540	140	-	-	5	2310	4300	750	950	22260CAF3	22260CAKF3	322	518	4	138

Boundary dimensions mm						Load rating kN		Limiting speed r/min		Bearing numbers		Mounting dimensions mm			Weight (reference) (Tapered bore) kg
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	da max	Da max	ra max	Weight (reference) (Tapered bore) kg
25	52	18.0	-	-	1.0	35.7	35.7	8500	11000	22205C	22205CK	31	46	1.0	0.18
25	52	18.0	-	-	1.0	43.1	44.0	8500	11000	22205CA	22205CAK	31	46	1.0	0.18
25	62	17.0	-	-	1.1	41.4	41.5	6700	8500	21305C	21305CK	32	55	1.0	0.25
30	62	20.0	-	-	1.0	48.9	52.0	7500	9500	22206C	22206CK	36	56	1.0	0.28
30	62	20.0	-	-	1.0	48.9	52.0	7500	9500	22206CA	22206CAK	36	56	1.0	0.32
30	72	19.0	-	-	1.1	55.2	61.0	6000	7500	21306C	21306CK	37	65	1.0	0.38
35	72	23.0	-	-	1.1	67.3	73.5	6300	8000	22207C	22207CK	42	65	1.0	0.43
35	72	23.0	-	-	1.1	67.3	73.5	6300	8000	22207CA	22207CAK	42	65	1.0	0.46
35	80	21.0	-	-	1.5	65.6	72.0	5300	6700	21307C	21307CK	44	71	1.5	0.51
40	80	23.0	-	-	1.1	73.6	81.5	6000	7500	22208C	22208CK	47	73	1.0	0.52
40	80	23.0	-	-	1.1	73.6	81.5	6000	7500	22208CA	22208CAK	47	73	1.0	0.54
40	90	23.0	-	-	1.5	82.8	98.0	4500	5600	21308C	21308CK	49	81	1.5	0.71
40	90	33.0	-	-	1.5	115.0	112.0	4500	5600	22308C	22308CK	49	81	1.5	1.00
40	90	33.0	-	-	1.5	115.0	112.0	4500	5600	22308CA	22308CAK	49	81	1.5	1.01
45	85	23.0	-	-	1.1	77.1	88.0	5300	6700	22209C	22209CK	52	78	1.0	0.56
45	85	23.0	-	-	1.1	77.1	88.0	5300	6700	22209CA	22209CAK	52	78	1.0	0.629
45	100	25.0	-	-	1.5	101.0	114.0	4300	5300	21309C	21309CK	54	91	1.5	0.95
45	100	36.0	-	-	1.5	138.0	160.0	3800	4800	22309C	22309CK	54	91	1.5	1.35
45	100	36.0	-	-	1.5	138.0	160.0	3800	4800	22309CA	22309CAK	54	91	1.5	1.52
50	90	23.0	-	-	1.1	84.5	100.0	5000	6300	22210C	22210CK	57	83	1.0	0.60
50	90	23.0	-	-	1.1	84.5	100.0	5000	6300	22210CA	22210CAK	57	83	1.0	0.63
50	90	23.0	5.5	2	1.1	84.5	100.0	5000	6300	22210CA/W33	-	57	83	1.0	0.63
50	110	27.0	-	-	2.0	120.0	140.0	3600	4800	21310C	21310CK	60	100	2.0	1.20
50	110	40.0	-	-	2.0	157.0	258.0	3400	4300	22310	22310K	60	100	2.0	2.10
50	110	40.0	-	-	2.0	176.0	200.0	3400	4300	22310C	2231CK	60	100	2.0	1.85
50	110	40.0	-	-	2.0	176.0	200.0	3400	4300	22310CA	2231CAK	60	100	2.0	2.17
50	110	40.0	5.5	2.5	2.0	176.0	200.0	3400	4300	22310CA/W33	22310CAK/W33	60	100	2.0	2.17
55	100	25.0	-	-	1.5	99.5	118.0	4500	5600	22211C	22211CK	64	91	1.5	0.82
55	100	25.0	-	-	1.5	99.5	118.0	4500	5600	22211CA	22211CAK	64	91	1.5	0.887

Boundary dimensions						Load rating		Limiting speed		Bearing numbers		Mounting dimensions			Weight
mm						kN		r/min				mm			(reference)
															(Tapered bore)
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	da	Da	ra	kg
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	max	max	max
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CK/30W33	212	298	2	30.5
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CAK30/W33	212	298	2	31.3
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CDK/W33	214	326	2.5	42.5
200	340	112	-	-	3	1380	2360	950	1300	23140CA	23140CAK	214	326	2.5	43.8
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CAK/W33	214	326	2.5	43.8
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CK30/W33	214	326	2.5	52
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CAK30/W33	214	326	2.5	52.1
200	360	98	-	-	4	1270	1930	1100	1500	22240	-	218	342	3	43.5
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CK/W33	218	342	3	43.5
200	360	98	-	-	4	1270	1930	1100	1500	22240CA	22240CAK	218	342	3	44.7
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CAK/W33	218	342	3	44.7
200	360	98	-	-	4	1270	1930	1100	1500	22240CAF3	22240CAKF3	218	342	3	44.7
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	23240CK/W33	218	342	3	57
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	22340CAK/W33	218	342	3	53.4
200	360	128	-	-	4	1610	2700	850	1100	-	23240CAK	218	342	3	53.4
200	420	138	22.3	12	5	2020	2900	850	1100	22340C/W33	22340CK/W33	222	398	4	92.5
200	420	138	-	-	5	2020	2900	850	1100	22340CA	22340CAK	222	398	4	97
200	420	138	22.3	12	5	2020	2900	850	1100	22340CA/W33	22340CAK/W33	222	398	4	97
200	420	138	-	-	5	2020	2900	850	1100	22340CAF3	-	222	398	4	97
200	420	165	-	-	5	2020	3500	750	950	23340CAF3	-	222	398	4	97
219.5	340	90	-	-	3	935	1900	1100	1500	23044CA/YA2	-	234	326	2.5	31.5
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23044C/W33	23944CK/W33	232	288	2	13
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23944C/W33	23944CAK/W33	232	288	2	13
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044C/W33	23044CDK/W33	234	326	2.5	30.5
220	340	90	-	-	3	1050	1860	1100	1500	23044CA	23044CAK	234	326	2.5	31.6
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044CA/W33	23044CAK/W33	234	326	2.5	31.6
220	340	90	-	-	3	1050	1860	1100	1500	-	23044CAKF3	234	326	2.5	31.6
220	340	118	11.1	6	3	1360	2600	850	1100	24044C/W33	24044CK30/W33	234	326	2.5	39.5
220	340	118	11.1	6	3	1360	2600	850	1100	24044CA/W33	24044CAK30/W33	234	326	2.5	39.1
220	340	118	-	-	3	1360	2600	850	1100	24044CAF3	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33X	-	234	326	2.5	39.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144C/W33	23144CK/W33	238	352	3	53
220	370	120	-	-	-	1580	2750	900	1200	23144CA	23144CAK	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/W33	23144CAK/W33	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/HG3W33	23144CAKF3/W33	238	352	3	54.6
220	370	150	11.1	6	4	1840	3350	500	630	24144C/W33	24144CK/W33	238	352	3	65
220	370	150	11.1	6	4	1840	3350	500	630	24144CA/W33	24144CAK/W33	238	352	3	-
220	400	108	16.7	9	4	1520	2360	950	1300	22244C/W33	22244CK/W33	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CA	22244CAK	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33X	-	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CAF3	-	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33	22244CAK/W33	238	382	3	63.5
220	460	145	22.3	12	5	2350	3450	750	950	22344C/W33	222344CK/W33	242	438	4	120
220	460	145	22.3	12	5	2350	3450	750	950	22344CA/W33	22344CAK/W334	242	438	4	123
220	400	144	16.7	8	4	1720	3200	750	950	23244CA/W33	23244CAK/W33	238	382	3	77.3
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948C/W33	23948CK/W33	252	308	2	14
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CA/W33	23948CAK/W33	252	308	2	15
240	320	60	-	-	2.1	564	1160	1300	1700	23948CAF3	-	252	308	2	15
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CAF3/W33	-	252	308	2	15
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048C/W33	23048CK/W33	254	346	2.5	33.5
240	360	92	-	-	3	1130	2080	1000	1400	23048CA	23048CAK	254	346	2.5	34.2
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048CA/W33	23048CAK/W33	254	346	2.5	34.2
240	360	92	-	-	3	1130	2080	1000	1400	23048CAQ1	-	254	346	2.5	34.2
240	360	118	11.1	6	3	1380	2700	800	1000	24048C/W33	24048CK/W33	254	346	2.5	42.5
240	360	118	-	-	3	1380	2700	800	1000	24048CA	24048CAK30	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33X	-	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33	24048CAK30/W33	254	346	2.5	46.5
240	400	128	16.7	9	4	1790	3200	850	1100	23148C/W33	23148CK/W33	258	382	3	65.5
240	400	128	-	-	4	1790	3200	850	1100	23148CA	-	258	382	3	68.2
240	400	128	16.7	9	4	1790	3200	850	1100	23148CA/W33	23148CAK/W33	258	382	3	68.2
240	400	160	11.1	6	4	2100	3900	480	600	24148C/W33	24148CK30/W33	258	382	3	80.5
240	400	160	11.1	6	4	2100	3900	480	600	24148CA	24148CAK30F3/W33	258	382	3	79
240	400	160	11.1	6	4	2100	3900	480	600	24148CA/W33	24148CAK30/W33	258	382	3	79
240	440	160	22.3	12	4	1910	3000	900	1200	22248C/W33	22248CK/W33	258	422	3	83
240	440	160	22.3	12	4	1910	3000	900	1200	22248CA/W33	22248CAK/W33	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/C9W33	-	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/W33	-	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248C/W33	23248CK/W33	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248CA/W33	23248CAK/W33	258	422	3	-
240	440	160	-	-	4	2530	4300	670	850	23248CAF3	-	258	422	3	-
241	360	92	-	-	3	985	2080	1000	1400	23048CAQ1/YA2	-	254	346	2.5	34
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952C/W33	23952CK/W33	272	348	2	24
260	360	75	-	-	2.1	880	1800	1100	1500	23952CA	-	272	348	2	21.6
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952CA/W33	23952CAK/W33	272	348	2	21.6
260	400	104	16.7	9	4	1400	2550	900	1200	23052C/W33	23052CK/W33	278	382	3	48.5
260	400	104	-	-	4	1400	2550	900	1200	23052CA	23052CAK	278	382	3	49.8
260	400	104	16.7	9	4	1400	2550	900	1200	23052CA/W33	23052CAK/W33	278	382	3	49.8
260	400	104	-	-	4	1400	2550	900	1200	23052CAF3	-	278	382	3	49.8
260	400	104	11.1	6	4	1760	3450	700	900	24052C/W33	24052CK/W33	278	382	3	64.5
260	400	104	11.1	6	4	1760	3450	700	900	24052CA/W33	24052CAK/W33	278	382	3	66.7
260	400	104	-	-	4	1760	3450	700	900	24052CAF3	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	24052CAF3/W33	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	-	24052CAK30/W33	278	382	3	66.7
260	440	144	16.7	9	4	2220	3900	800	1000	23152C/W33	23152CK/W33	278	422	3	90.5
260	440	144	-	-	-	2220	3900	800	1000	23152CA	23152CAK	278	422	3	88.9
260	440	144	16.7	9	4	2222	3900	800	1000	23152CA/W33	23152CAK/W33	278	422	3	88.9
260	440	144	16.7	9	4	2220	3900	800	1000	-	24152CK30/W33	278	422	3	88.9
260	440	180	13.9	7.5	4	2620	4800	430	530	24152C/W33	-	278	422	3	110
260	440	180	-	-	4	2620	4800	430	530	24152CA	22252CAK	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CA/W33	-	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CAF3/W33	23252CAK/W33	278	422	3	115
260	480	130	-	-	5	2280	3600	850	1100	22252CA	-	278	458	4	106
260	480	130	-	-	5	2280	3600	850	1100	22252CA/W33	-	282	458	4	106
260	480	174	22.3	8	5	2800	4750	630	800	23252CA/W33	23252CAK/W33	282	458	4	145
260	480	174	22.3	8	5	2800	4750	630	800	23252CAF3/W33	23252CAKT7W33	282	458	4	145
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
300	420	90	11.1	6	3	1200	2500	950	1300	23960C/W33	23960CK/W33	314	406	2.5	40.5
300	420	90	11.1	7	3	1200	2500	950	1300	23960CA/W33	23960CAK/W33	314	406	2.5	40.1
300	460	118	16.7	7	4	1610	3450	800	1000	23060CAF3/W33	-	318	442	3	74.9
300	460	118	-	-	4	1610	3450	800	1000	-	23060CAK	318	442	3	73.6
300	460	118	16.7	7	4	1610	3450	800	1000	-	23060CAK/W33	318	442	3	73.6
300	460	160	-	-	4	2020	2700	600	750	24060CA	-	318	442	3	99
300	460	160	13.9	7	4	2020	2700	600	750	24060CA/W33	-	318	442	3	99
300	500	160	-	-	5	2310	4750	670	850	23160CA	-	322	478	4	126
300	500	160	-	-	5	2310	4750	670	850	23160CAF3	23160CAKF3	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23160CAF3/C9W33	-	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23060CA/W33	23160CAK/W33	322	478	4	125
300	540	140	-	-	5	2310	4300	750	950	22260CA	-	322	518	4	138
300	540	140	-	-	5	2310	4300	750	950	22260CAF3	22260CAKF3	322	518	4	138
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CK/30W33	212	298	2	30.5
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CAK30/W33	212	298	2	31.3
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CDK/W33	214	326	2.5	42.5
200	340	112	-	-	3	1380	2360	950	1300	23140CA	23140CAK	214	326	2.5	43.8
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CAK/W33	214	326	2.5	43.8
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CK30/W33	214	326	2.5	52
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CAK30/W33	214	326	2.5	52.1
200	360	98	-	-	4	1270	1930	1100	1500	22240	-	218	342	3	43.5
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CK/W33	218	342	3	43.5
200	360	98	-	-	4	1270	1930	1100	1500	22240CA	22240CAK	218	342	3	44.7
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CAK/W33	218	342	3	44.7
200	360	98	-	-	4	1270	1930	1100	1500	22240CAF3	22240CAKF3	218	342	3	44.7
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	23240CK/W33	218	342	3	57
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	22340CAK/W33	218	342	3	53.4
200	360	128	-	-	4	1610	2700	850	1100	-	23240CAK	218	342	3	53.4
200	420	138	22.3	12	5	2020	2900	850	1100	22340C/W33	22340CK/W33	222	398	4	92.5
200	420	138	-	-	5	2020	2900	850	1100	22340CA	22340CAK	222	398	4	97
200	420	138	22.3	12	5	2020	2900	850	1100	22340CA/W33	22340CAK/W33	222	398	4	97
200	420	138	-	-	5	2020	2900	850	1100	22340CAF3	-	222	398	4	97
200	420	165	-	-	5	2020	3500	750	950	23340CAF3	-	222	398	4	97
219.5	340	90	-	-	3	935	1900	1100	1500	23044CA/YA2	-	234	326	2.5	31.5
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23044C/W33	23944CK/W33	232	288	2	13
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23944C/W33	23944CAK/W33	232	288	2	13
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044C/W33	23044CDK/W33	234	326	2.5	30.5
220	340	90	-	-	3	1050	1860	1100	1500	23044CA	23044CAK	234	326	2.5	31.6
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044CA/W33	23044CAK/W33	234	326	2.5	31.6
220	340	90	-	-	3	1050	1860	1100	1500	-	23044CAKF3	234	326	2.5	31.6
220	340	118	11.1	6	3	1360	2600	850	1100	24044C/W33	24044CK30/W33	234	326	2.5	39.5
220	340	118	11.1	6	3	1360	2600	850	1100	24044CA/W33	24044CAK30/W33	234	326	2.5	39.1
220	340	118	-	-	3	1360	2600	850	1100	24044CAF3	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33X	-	234	326	2.5	39.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144C/W33	23144CK/W33	238	352	3	53
220	370	120	-	-	-	1580	2750	900	1200	23144CA	23144CAK	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/W33	23144CAK/W33	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/HG3W33	23144CAKF3/W33	238	352	3	54.6
220	370	150	11.1	6	4	1840	3350	500	630	24144C/W33	24144CK/W33	238	352	3	65
220	370	150	11.1	6	4	1840	3350	500	630	24144CA/W33	24144CAK/W33	238	352	3	-
220	400	108	16.7	9	4	1520	2360	950	1300	22244C/W33	22244CK/W33	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CA	22244CAK	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33X	-	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CAF3	-	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33	22244CAK/W33	238	382	3	63.5
220	460	145	22.3	12	5	2350	3450	750	950	22344C/W33	222344CK/W33	242	438	4	120
220	460	145	22.3	12	5	2350	3450	750	950	22344CA/W33	22344CAK/W334	242	438	4	123
220	400	144	16.7	8	4	1720	3200	750	950	23244CA/W33	23244CAK/W33	238	382	3	77.3
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948C/W33	23948CK/W33	252	308	2	14
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CA/W33	23948CAK/W33	252	308	2	15
240	320	60	-	-	2.1	564	1160	1300	1700	23948CAF3	-	252	308	2	15
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CAF3/W33	-	252	308	2	15
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048C/W33	23048CK/W33	254	346	2.5	33.5
240	360	92	-	-	3	1130	2080	1000	1400	23048CA	23048CAK	254	346	2.5	34.2
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048CA/W33	23048CAK/W33	254	346	2.5	34.2
240	360	92	-	-	3	1130	2080	1000	1400	23048CAQ1	-	254	346	2.5	34.2
240	360	118	11.1	6	3	1380	2700	800	1000	24048C/W33	24048CK/W33	254	346	2.5	42.5
240	360	118	-	-	3	1380	2700	800	1000	24048CA	24048CAK30	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33X	-	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33	24048CAK30/W33	254	346	2.5	46.5
240	400	128	16.7	9	4	1790	3200	850	1100	23148C/W33	23148CK/W33	258	382	3	65.5
240	400	128	-	-	4	1790	3200	850	1100	23148CA	-	258	382	3	68.2
240	400	128	16.7	9	4	1790	3200	850	1100	23148CA/W33	23148CAK/W33	258	382	3	68.2
240	400	160	11.1	6	4	2100	3900	480	600	24148C/W33	24148CK30/W33	258	382	3	80.5
240	400	160	11.1	6	4	2100	3900	480	600	24148CA	24148CAK30F3/W33	258	382	3	79
240	400	160	11.1	6	4	2100	3900	480	600	24148CA/W33	24148CAK30/W33	258	382	3	79
240	440	160	22.3	12	4	1910	3000	900	1200	22248C/W33	22248CK/W33	258	422	3	83
240	440	160	22.3	12	4	1910	3000	900	1200	22248CA/W33	22248CAK/W33	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/C9W33	-	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/W33	-	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248C/W33	23248CK/W33	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248CA/W33	23248CAK/W33	258	422	3	-
240	440	160	-	-	4	2530	4300	670	850	23248CAF3	-	258	422	3	-
241	360	92	-	-	3	985	2080	1000	1400	23048CAQ1/YA2	-	254	346	2.5	34
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952C/W33	23952CK/W33	272	348	2	24
260	360	75	-	-	2.1	880	1800	1100	1500	23952CA	-	272	348	2	21.6
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952CA/W33	23952CAK/W33	272	348	2	21.6
260	400	104	16.7	9	4	1400	2550	900	1200	23052C/W33	23052CK/W33	278	382	3	48.5
260	400	104	-	-	4	1400	2550	900	1200	23052CA	23052CAK	278	382	3	49.8
260	400	104	16.7	9	4	1400	2550	900	1200	23052CA/W33	23052CAK/W33	278	382	3	49.8
260	400	104	-	-	4	1400	2550	900	1200	23052CAF3	-	278	382	3	49.8
260	400	104	11.1	6	4	1760	3450	700	900	24052C/W33	24052CK/W33	278	382	3	64.5
260	400	104	11.1	6	4	1760	3450	700	900	24052CA/W33	24052CAK/W33	278	382	3	66.7
260	400	104	-	-	4	1760	3450	700	900	24052CAF3	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	24052CAF3/W33	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	-	24052CAK30/W33	278	382	3	66.7
260	440	144	16.7	9	4	2220	3900	800	1000	23152C/W33	23152CK/W33	278	422	3	90.5
260	440	144	-	-	-	2220	3900	800	1000	23152CA	23152CAK	278	422	3	88.9
260	440	144	16.7	9	4	2222	3900	800	1000	23152CA/W33	23152CAK/W33	278	422	3	88.9
260	440	144	16.7	9	4	2220	3900	800	1000	-	24152CK30/W33	278	422	3	88.9
260	440	180	13.9	7.5	4	2620	4800	430	530	24152C/W33	-	278	422	3	110
260	440	180	-	-	4	2620	4800	430	530	24152CA	22252CAK	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CA/W33	-	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CAF3/W33	23252CAK/W33	278	422	3	115
260	480	130	-	-	5	2280	3600	850	1100	22252CA	-	278	458	4	106
260	480	130	-	-	5	2280	3600	850	1100	22252CA/W33	-	282	458	4	106
260	480	174	22.3	8	5	2800	4750	630	800	23252CA/W33	23252CAK/W33	282	458	4	145
260	480	174	22.3	8	5	2800	4750	630	800	23252CAF3/W33	23252CAKT7W33	282	458	4	145
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
300	420	90	11.1	6	3	1200	2500	950	1300	23960C/W33	23960CK/W33	314	406	2.5	40.5
300	420	90	11.1	7	3	1200	2500	950	1300	23960CA/W33	23960CAK/W33	314	406	2.5	40.1
300	460	118	16.7	7	4	1610	3450	800	1000	23060CAF3/W33	-	318	442	3	74.9
300	460	118	-	-	4	1610	3450	800	1000	-	23060CAK	318	442	3	73.6
300	460	118	16.7	7	4	1610	3450	800	1000	-	23060CAK/W33	318	442	3	73.6
300	460	160	-	-	4	2020	2700	600	750	24060CA	-	318	442	3	99
300	460	160	13.9	7	4	2020	2700	600	750	24060CA/W33	-	318	442	3	99
300	500	160	-	-	5	2310	4750	670	850	23160CA	-	322	478	4	126
300	500	160	-	-	5	2310	4750	670	850	23160CAF3	23160CAKF3	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23160CAF3/C9W33	-	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23060CA/W33	23160CAK/W33	322	478	4	125
300	540	140	-	-	5	2310	4300	750	950	22260CA	-	322	518	4	138
300	540	140	-	-	5	2310	4300	750	950	22260CAF3	22260CAKF3	322	518	4	138
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CK/30W33	212	298	2	30.5
200	310	109	11.1	6	2.1	1130	2120	900	1200	24040C/W33	24040CAK30/W33	212	298	2	31.3
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CDK/W33	214	326	2.5	42.5
200	340	112	-	-	3	1380	2360	950	1300	23140CA	23140CAK	214	326	2.5	43.8
200	340	112	16.7	9	3	1380	2360	950	1300	23140C/W33	23140CAK/W33	214	326	2.5	43.8
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CK30/W33	214	326	2.5	52
200	340	140	11.1	6	3	1580	2600	560	700	24140C/W33	24140CAK30/W33	214	326	2.5	52.1
200	360	98	-	-	4	1270	1930	1100	1500	22240	-	218	342	3	43.5
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CK/W33	218	342	3	43.5
200	360	98	-	-	4	1270	1930	1100	1500	22240CA	22240CAK	218	342	3	44.7
200	360	98	16.7	9	4	1270	1930	1100	1500	22240C/W33	22240CAK/W33	218	342	3	44.7
200	360	98	-	-	4	1270	1930	1100	1500	22240CAF3	22240CAKF3	218	342	3	44.7
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	23240CK/W33	218	342	3	57
200	360	128	16.7	9	4	1610	2700	850	1100	23240C/W33	22340CAK/W33	218	342	3	53.4
200	360	128	-	-	4	1610	2700	850	1100	-	23240CAK	218	342	3	53.4
200	420	138	22.3	12	5	2020	2900	850	1100	22340C/W33	22340CK/W33	222	398	4	92.5
200	420	138	-	-	5	2020	2900	850	1100	22340CA	22340CAK	222	398	4	97
200	420	138	22.3	12	5	2020	2900	850	1100	22340CA/W33	22340CAK/W33	222	398	4	97
200	420	138	-	-	5	2020	2900	850	1100	22340CAF3	-	222	398	4	97
200	420	165	-	-	5	2020	3500	750	950	23340CAF3	-	222	398	4	97
219.5	340	90	-	-	3	935	1900	1100	1500	23044CA/YA2	-	234	326	2.5	31.5
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23044C/W33	23944CK/W33	232	288	2	13
220	300	60	8.3	4.5	2.1	546	1080	1500	1900	23944C/W33	23944CAK/W33	232	288	2	13
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044C/W33	23044CDK/W33	234	326	2.5	30.5
220	340	90	-	-	3	1050	1860	1100	1500	23044CA	23044CAK	234	326	2.5	31.6
220	340	90	13.9	7.5	3	1050	1860	1100	1500	23044CA/W33	23044CAK/W33	234	326	2.5	31.6
220	340	90	-	-	3	1050	1860	1100	1500	-	23044CAKF3	234	326	2.5	31.6
220	340	118	11.1	6	3	1360	2600	850	1100	24044C/W33	24044CK30/W33	234	326	2.5	39.5
220	340	118	11.1	6	3	1360	2600	850	1100	24044CA/W33	24044CAK30/W33	234	326	2.5	39.1
220	340	118	-	-	3	1360	2600	850	1100	24044CAF3	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33	-	234	326	2.5	39.1
220	340	118	11.1	6	3	1360	2600	850	1100	24044CAF3/W33X	-	234	326	2.5	39.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144C/W33	23144CK/W33	238	352	3	53
220	370	120	-	-	-	1580	2750	900	1200	23144CA	23144CAK	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/W33	23144CAK/W33	238	352	3	53.1
220	370	120	16.7	9	4	1580	2750	900	1200	23144CA/HG3W33	23144CAKF3/W33	238	352	3	54.6
220	370	150	11.1	6	4	1840	3350	500	630	24144C/W33	24144CK/W33	238	352	3	65
220	370	150	11.1	6	4	1840	3350	500	630	24144CA/W33	24144CAK/W33	238	352	3	-
220	400	108	16.7	9	4	1520	2360	950	1300	22244C/W33	22244CK/W33	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CA	22244CAK	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33X	-	238	382	3	60.5
220	400	108	-	-	4	1520	2360	950	1300	22244CAF3	-	238	382	3	60.5
220	400	108	16.7	9	4	1520	2360	950	1300	22244CA/W33	22244CAK/W33	238	382	3	63.5
220	460	145	22.3	12	5	2350	3450	750	950	22344C/W33	222344CK/W33	242	438	4	120
220	460	145	22.3	12	5	2350	3450	750	950	22344CA/W33	22344CAK/W334	242	438	4	123
220	400	144	16.7	8	4	1720	3200	750	950	23244CA/W33	23244CAK/W33	238	382	3	77.3
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948C/W33	23948CK/W33	252	308	2	14
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CA/W33	23948CAK/W33	252	308	2	15
240	320	60	-	-	2.1	564	1160	1300	1700	23948CAF3	-	252	308	2	15
240	320	60	8.3	4.5	2.1	564	1160	1300	1700	23948CAF3/W33	-	252	308	2	15
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048C/W33	23048CK/W33	254	346	2.5	33.5
240	360	92	-	-	3	1130	2080	1000	1400	23048CA	23048CAK	254	346	2.5	34.2
240	360	92	13.9	7.5	3	1130	2080	1000	1400	23048CA/W33	23048CAK/W33	254	346	2.5	34.2
240	360	92	-	-	3	1130	2080	1000	1400	23048CAQ1	-	254	346	2.5	34.2
240	360	118	11.1	6	3	1380	2700	800	1000	24048C/W33	24048CK/W33	254	346	2.5	42.5
240	360	118	-	-	3	1380	2700	800	1000	24048CA	24048CAK30	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33X	-	254	346	2.5	46.5
240	360	118	11.1	6	3	1380	2700	800	1000	24048CA/W33	24048CAK30/W33	254	346	2.5	46.5
240	400	128	16.7	9	4	1790	3200	850	1100	23148C/W33	23148CK/W33	258	382	3	65.5
240	400	128	-	-	4	1790	3200	850	1100	23148CA	-	258	382	3	68.2
240	400	128	16.7	9	4	1790	3200	850	1100	23148CA/W33	23148CAK/W33	258	382	3	68.2
240	400	160	11.1	6	4	2100	3900	480	600	24148C/W33	24148CK30/W33	258	382	3	80.5
240	400	160	11.1	6	4	2100	3900	480	600	24148CA	24148CAK30F3/W33	258	382	3	79
240	400	160	11.1	6	4	2100	3900	480	600	24148CA/W33	24148CAK30/W33	258	382	3	79
240	440	160	22.3	12	4	1910	3000	900	1200	22248C/W33	22248CK/W33	258	422	3	83
240	440	160	22.3	12	4	1910	3000	900	1200	22248CA/W33	22248CAK/W33	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/C9W33	-	258	422	3	-
240	440	160	22.3	12	4	1910	3000	900	1200	22248CAF3/W33	-	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248C/W33	23248CK/W33	258	422	3	-
240	440	160	22.3	12	4	2530	4300	670	850	23248CA/W33	23248CAK/W33	258	422	3	-
240	440	160	-	-	4	2530	4300	670	850	23248CAF3	-	258	422	3	-
241	360	92	-	-	3	985	2080	1000	1400	23048CAQ1/YA2	-	254	346	2.5	34
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952C/W33	23952CK/W33	272	348	2	24
260	360	75	-	-	2.1	880	1800	1100	1500	23952CA	-	272	348	2	21.6
260	360	75	8.3	4.5	2.1	880	1800	1100	1500	23952CA/W33	23952CAK/W33	272	348	2	21.6
260	400	104	16.7	9	4	1400	2550	900	1200	23052C/W33	23052CK/W33	278	382	3	48.5
260	400	104	-	-	4	1400	2550	900	1200	23052CA	23052CAK	278	382	3	49.8
260	400	104	16.7	9	4	1400	2550	900	1200	23052CA/W33	23052CAK/W33	278	382	3	49.8
260	400	104	-	-	4	1400	2550	900	1200	23052CAF3	-	278	382	3	49.8
260	400	104	11.1	6	4	1760	3450	700	900	24052C/W33	24052CK/W33	278	382	3	64.5
260	400	104	11.1	6	4	1760	3450	700	900	24052CA/W33	24052CAK/W33	278	382	3	66.7
260	400	104	-	-	4	1760	3450	700	900	24052CAF3	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	24052CAF3/W33	-	278	382	3	66.7
260	400	104	11.1	6	4	1760	3450	700	900	-	24052CAK30/W33	278	382	3	66.7
260	440	144	16.7	9	4	2220	3900	800	1000	23152C/W33	23152CK/W33	278	422	3	90.5
260	440	144	-	-	-	2220	3900	800	1000	23152CA	23152CAK	278	422	3	88.9
260	440	144	16.7	9	4	2222	3900	800	1000	23152CA/W33	23152CAK/W33	278	422	3	88.9
260	440	144	16.7	9	4	2220	3900	800	1000	-	24152CK30/W33	278	422	3	88.9
260	440	180	13.9	7.5	4	2620	4800	430	530	24152C/W33	-	278	422	3	110
260	440	180	-	-	4	2620	4800	430	530	24152CA	22252CAK	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CA/W33	-	278	422	3	115
260	440	180	13.9	7.5	4	2620	4800	430	530	24152CAF3/W33	23252CAK/W33	278	422	3	115
260	480	130	-	-	5	2280	3600	850	1100	22252CA	-	278	458	4	106
260	480	130	-	-	5	2280	3600	850	1100	22252CA/W33	-	282	458	4	106
260	480	174	22.3	8	5	2800	4750	630	800	23252CA/W33	23252CAK/W33	282	458	4	145
260	480	174	22.3	8	5	2800	4750	630	800	23252CAF3/W33	23252CAKT7W33	282	458	4	145
260	540	165	22.3	8	6	3000	4700	630	800	22352CAF3/W33	22352CAKF3/W33	288	512	5	184
260	380	75	11.1	6	2.1	845	1760	1000	1400	23956C/W33	23956CK/W33	292	368	2	26
280	380	75	11.1	6	2.1	845	1760	1000	1400	23956CA/W33	23956CAK/W33	292	368	2	25.7
280	380	75	11.1	6	2.1	845	1760	100	1400	23956CAQ1/W33	-	292	368	2	25.7
280	420	106	16.7	9	4	1520	2850	850	1100	23056C/W33	23056CK/W33	298	402	3	52.5
280	420	106	-	-	4	1520	2850	850	1100	23056CA	23056CAK	298	402	3	56.8
280	420	106	16.7	9	4	1520	2850	850	1100	23056CA/W33	23056CAK/W33	298	402	3	56.8
280	420	140	11.1	6	4	1870	3800	670	850	24056C/W33	24056CK30/W33	298	402	3	68.5
280	420	140	11.1	6	4	1870	3800	670	850	24056CA/W33	24056CAK30/W33	298	402	3	69.2
280	420	140	-	-	4	1870	3800	670	850	24056CAF3	-	298	402	3	69.2
280	420	140	11.1	6	4	1870	3800	670	850	24056CAF3/W33	24056CAK30F3/W33	298	402	3	69.2
280	460	146	-	-	5	1990	4150	750	950	23156CA	23156CAK	302	438	4	104
280	460	146	16.7	8	5	1990	4150	750	950	23156CA/W33	23156CAK/W33	302	438	4	101
280	460	146	-	-	5	1990	4150	750	950	23156CAF3	23156CAKF3	302	438	4	103
280	460	146	-	-	5	1990	4150	750	950	23156X2CA	-	302	438	4	87
280	460	180	-	-	5	2220	4750	400	500	24156CA	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/W33	-	302	438	4	119
280	460	180	13.9	8	5	2220	4750	400	500	24156CA/HCW33	-	302	438	4	119
280	500	130	22.3	8	5	1990	3600	800	1000	22256CA	22256CAK/W33	302	478	4	118
280	500	130	-	-	5	1990	3600	800	1000	22256CAF3	-	302	478	4	118
280	500	176	-	-	5	2580	5100	600	750	2325CA	-	302	478	4	147
280	500	176	-	-	5	2580	5100	600	750	23256CAF3	-	302	478	4	146
280	500	176	22.3	8	5	2580	5100	600	750	23256CAF3/W33	-	302	478	4	146
280	580	175	22.3	8	6	3200	5700	600	750	2235CA/W33	-	308	552	5	221
300	420	90	11.1	6	3	1200	2500	950	1300	23960C/W33	23960CK/W33	314	406	2.5	40.5
300	420	90	11.1	7	3	1200	2500	950	1300	23960CA/W33	23960CAK/W33	314	406	2.5	40.1
300	460	118	16.7	7	4	1610	3450	800	1000	23060CAF3/W33	-	318	442	3	74.9
300	460	118	-	-	4	1610	3450	800	1000	-	23060CAK	318	442	3	73.6
300	460	118	16.7	7	4	1610	3450	800	1000	-	23060CAK/W33	318	442	3	73.6
300	460	160	-	-	4	2020	2700	600	750	24060CA	-	318	442	3	99
300	460	160	13.9	7	4	2020	2700	600	750	24060CA/W33	-	318	442	3	99
300	500	160	-	-	5	2310	4750	670	850	23160CA	-	322	478	4	126
300	500	160	-	-	5	2310	4750	670	850	23160CAF3	23160CAKF3	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23160CAF3/C9W33	-	322	478	4	125
300	500	160	16.7	9	5	2310	4750	670	850	23060CA/W33	23160CAK/W33	322	478	4	125
300	540	140	-	-	5	2310	4300	750	950	22260CA	-	322	518	4	138
300	540	140	-	-	5	2310	4300	750	950	22260CAF3	22260CAKF3	322	518	4	138

Boundary dimensions mm						Load rating kN		Limiting speed r/min		Bearing numbers		Mounting dimensions mm			Weight (reference) (Tapered bore) kg
d	D	B	b	k	r1,2	Cr	Cor	Grease	Oil	Cylindrical bore	Tapered bore	da max	Da max	ra max	Weight (reference) (Tapered bore) kg
300	540	192	22.0	10	5.0	3300	5600	530	670	23260CAF1	23260CAKF1/W33	322	518	4.0	192.0
320	480	121	16.7	8	4.0	1930	2200	800	1000	23064CAF3/W33	23064CAK/W33	338	462	3.0	84.7
320	480	160	-	-	4.0	2480	5100	560	700	24064CAF3	-	338	462	3.0	106
320	480	160	22.0	8	4.0	2480	5100	560	700	24064CAF3/W33	-	338	462	3.0	106
320	540	176	-	-	5.0	3150	3200	630	800	23164CA	-	342	518	4.0	200
320	540	176	22.3	8	5.0	3150	3200	630	800	23164CA/W33	-	342	518	4.0	-
320	540	176	-	-	5.0	3150	3200	630	800	-	23164CAK	342	518	4.0	195
320	540	176	22.3	8	5.0	3150	3200	630	800	-	23164CAK/W33	342	518	4.0	195
320	580	150	-	-	5.0	2490	4550	670	850	22264CA	22264CAK	342	558	4.0	175
320	580	208	24	10	5.0	3900	6800	500	630	22264CA/W33	-	342	558	4.0	253
320	580	208	24	10	5.0	3900	6800	500	630	23264CAF3/W33	-	342	558	4.0	253
320	580	208	24	10	5.0	3900	6800	500	630	23264CAF3	23264CAKF3/W33	342	558	4.0	252
340	460	90	15	6	3.0	1200	2700	900	1200	23968CAF3/W33	-	354	446	2.5	45.6
340	520	133	-	-	5.0	1980	4400	700	900	23068CA	-	362	498	4.0	115
340	520	133	22.3	8	5.0	1980	4400	700	900	23068CA/W33	-	362	498	4.0	115
340	520	133	-	-	5.0	1980	4400	700	900	23068CAF3	-	362	498	4.0	114
340	520	133	22.3	8	5.0	1980	4400	700	900	23068CAF3/W33	-	362	498	4.0	114
340	520	133	-	-	5.0	1980	4400	700	900	-	23068CAKF3	362	498	4.0	111
340	520	133	22.3	8	5.0	1980	4400	700	900	-	23068CAFKF/W33	362	498	4.0	111
340	520	180	16.7	8	5.0	2460	5700	530	670	24068CA/W33	-	362	498	4.0	137
340	520	180	16.7	8	5.0	24760	5700	530	670	24068CAF1/W33	-	362	498	4.0	137
340	520	180	-	-	5.0	2460	5700	530	670	-	24068CAK30F1	362	498	4.0	134
340	580	190	22.3	8	5.0	3050	6300	600	750	23168CA/W33	-	362	558	4.0	211
340	580	190	22.3	8	5.0	3050	6300	600	750	23168CAF3/W33	23168CAKF3/W33	362	558	4.0	211
340	580	234	22.3	10	5.0	3700	7950	320	400	-	24168CAK30/W33	362	558	4.0	256
360	480	90	-	-	3.0	1290	2820	850	1100	23972CA	-	374	466	2.5	46.6
360	540	134	-	-	5.0	2280	4800	670	850	23072CA	-	382	518	4.0	126
360	540	134	22.3	8	5.0	2280	4800	670	850	23072CA/W33	-	382	518	4.0	126
360	540	134	-	-	5.0	2280	4800	670	850	23072CAF3	-	382	518	4.0	126
360	540	134	22.3	8	5.0	2280	4800	670	850	23072CAF3/W33	23072CAKF3/W33	382	518	4.0	126
360	600	192	-	-	5.0	3250	6850	560	700	23172CA	-	382	578	4.0	255
360	600	243	-	-	5.0	5600	8400	300	380	24172CA	-	382	578	4.0	270
360	600	243	20.0	12	5.0	5600	8400	300	380	24172CA/W33	-	382	578	4.0	270
360	600	243	-	-	5.0	5600	8400	300	380	24172CAF1	-	382	578	4.0	269
360	600	243	20.0	12	5.0	5600	8400	300	380	24172CAF1/W33	-	382	578	4.0	269
360	600	243	20.0	12	5.0	5600	8400	300	380	-	24172CAK30/W33	382	578	4.0	270
360	600	243	20.0	12	5.0	5600	8400	30	380	-	24172CAK30F1/W33	382	578	4.0	270
360	650	232	22.3	10	6.0	4650	8300	400	500	-	23272CAKF3/W33	388	622	5.0	330
360	750	224	-	-	7.5	4900	8600	400	.500	22372CAF3	22372CAKF3	392	720	6.0	466
360	750	224	-	-	7.5	4900	8600	400	500	-	22372CAK	392	720	6.0	460
380	520	106	15	10	4.0	1730	380	800	1000	23976CAKF1/W33	-	398	502	3.0	69.5
380	560	135	-	-	5.0	2480	5000	630	800	23076CA	23076CAKF3	402	538	4.0	130
380	560	180	22	10	5.0	3150	6900	480	600	-	24076CAK30F3/W33	402	538	4.0	153
380	620	194	-	-	5.0	3400	7350	400	500	-	23176CAK	402	598	4.0	244
380	620	194	22	8	5.0	3400	7350	400	500	23176CAF3/W33	23176CAKF3/W33	402	598	4.0	244
380	620	194	22	8	5.0	3400	7350	400	500	23176CAF3/HAW33	-	402	598	4.0	244
400	540	106	15	10	4.0	2540	3900	750	950	23980CAF1/W33	-	418	522	3.0	72.4
400	600	148	-	-	5.0	2540	5900	600	750	23080CA	-	422	578	4.0	161
400	600	148	-	-	5.0	1730	5900	600	750	23080CAF3	23080CAKF3	422	578	4.0	161
400	600	148	22	12	5.0	1730	5900	600	750	23080CAF3/W33	-	422	578	4.0	161
400	600	200	-	-	5.0	3600	7800	450	560	24080CAF3	-	422	578	4.0	202
400	600	200	22	12	5.0	3600	7800	450	560	24080CAF3/W33	-	422	578	4.0	202
400	650	200	-	-	6.0	4100	7650	380	480	23180CA	-	428	622	5.0	275
400	650	200	22.3	8	6.0	4100	7650	380	480	23180CA/W33	-	428	622	5.0	275
400	650	200	-	-	6.0	4100	7650	380	480	23080CAF3	-	428	622	5.0	273
400	650	200	22.3	8	6.0	4100	7650	380	480	23180CAF3/W33	23180CAKF3/W33	428	622	5.0	264
400	670	216	22.3	8	6.0	4000	8550	380	480	23180X3CA/W33	-	428	622	5.0	293
400	720	256	22.0	10	6.0	6150	11300	340	430	23280CA/W33	-	428	692	5.0	353
400	720	256	22.0	10	6.0	6150	11300	340	430	23280CAF3/W33	-	428	692	5.0	353
420	620	150	-	-	5.0	2700	6400	450	560	23084CA	-	442	598	4.0	149
420	620	150	-	-	5.0	2700	6400	450	560	23048CAF3	23048CAKF3	442	598	4.0	149
420	620	150	22	8	5.0	2700	6400	450	560	23048CAF3/W33	-	442	598	4.0	149
420	620	200	22.3	12	5.0	3350	8450	380	480	24084CA/W33	-	422	598	4.0	202
420	620	200	22.3	12	5.0	3350	8450	380	480	24084CAF3AV33	-	422	598	4.0	202
420	620	200	22.3	12	5.0	3350	8450	380	480	-	24084CAK30F3/W33X	442	598	4.0	197
420	700	224	-	-	6.0	4250	9200	360	450	23184CAF3	2318CAK	448	672	5.0	353
420	760	272	22	12	7.5	5610	11900	320	400	23284CA/W33	23284CAK/W33	456	724	6.0	550
420	760	272	22	12	7.5	5610	11900	320	400	23284CAF3/C9W33	-	456	724	6.0	549
440	650	157	-	-	6.0	2780	6500	430	530	23088CAF3	23088CAKF3	468	622	5.0	185
440	650	157	22.3	8	6.0	2780	6500	430	530	23088CAF3/W33	-	468	622	5.0	179
440	720	226	-	-	6.0	4500	10000	340	430	23188CA	-	468	692	5.0	378
460	680	163	23.5	12	6.0	3450	6950	400	500	23092CAF3/W33	23092CAKF3	488	652	5.0	226
460	680	218	24	12	6.0	4200	9100	340	430	24092CAF3/W33	-	488	652	5.0	304
460	760	240	22	8	7.5	5500	10000	320	400	23192CAF3	23192CAKF3/W33	496	724	6.0	457
460	760	300	22.3	8	7.5	6100	14400	160	200	24192CA/W33	-	496	724	6.0	459
460	830	296	22.3	10	7.5	7350	13500	300	380	-	23292CAKF3/W33	496	794	6.0	698
480	600	90	-	-	3.0	1290	4000	450	600	23896CA	-	500	580	3.0	60.4
480	650	128	16.7	10	5.0	2150	5750	400	500	23996CAF1/W33	-	502	628	4.0	125
480	790	248	22	12	7.5	6100	12000	300	380	23196CAF1/W33	23196CAKF1/W33X	516	754	6.0	516
480	870	310	-	-	7.5	6750	15200	260	340	-	2396CAKF3	516	834	6.0	853
500	670	128	-	-	5.0	2530	6000	400	500	239/500CAF1	-	522	648	4.0	120
500	720	167	22.3	8	6.0	3150	7650	380	480	230/500CAF3/HAW33X	-	528	692	5.0	228
500	920	336	22.3	12	7.5	8600	18600	280	360	232/500CAF3/W33	-	536	884	6.0	985
530	780	185	-	-	6.0	3900	9650	340	430	230/530CA	-	558	752	5.0	339
530	780	185	24	12	6.0	3900	9650	340	430	230/530CA/W33X	-	558	752	5.0	339
530	780	185	-	-	6.0	3900	9650	340	430	230/530CAF3	-	558	752	5.0	335
530	780	185	24	12	6.0	3900	9650	340	430	230/530CAF3/W33	-	558	752	5.0	335
560	750	140	-	-	5.0	3050	7200	340	430	239/560CAF1	-	582	728	4.0	177
560	820	195	-	-	6.0	4300	10500	320	410	230/560CA	230/560CAF3	588	792	5.0	363
560	820	195	22.3	9	6.0	4300	10500	320	410	230/560CAF3/W33	-	588	792	5.0	360
560	920	280	22.3	12	7.5	6900	15700	240	320	231/560CA/W33	231/560CAK/W33	596	884	6.0	756
560	920	280	22.3	12	7.5	6900	15700	240	320	231/560CAF3/W33	231560CAKF3/W33	596	884	6.0	754
600	870	200	-	-	6.0	4700	11600	300	380	230/600CAF3	230/600CAKF3	628	842	5.0	442
600	870	200	22.3	9	6.0	4700	11600	300	380	230/600CAF3/W33	-	628	842	5.0	430
600	980	375	-	-	7.5	8800	21600	100	150	241/600CA	-	636	944	6.0	1140
630	920	212	-	-	7.5	5150	12800	260	340	230/630CAF3	-	666	884	6.0	471
670	980	230	-	-	7.5	5730	14200	240	320	230/750CAF3	-	706	944	6.0	601
750	1090	250	-	-	7.5	7000	17900	200	280	230/750CA	-	786	1054	6.0	789
750	1090	250	-	-	7.5	7000	17900	200	280	230/750CAF3	-	786	1054	6.0	789
800	1150	345	-	-	7.5	10300	24600	170	220	240/800CAF1	-	836	1114	6.0	1092
850	1220	272	-	-	7.5	8450	22500	180	240	230/850CAF1	230/850CAKF1	886	1184	6.0	1074
850	1220	365	22.3	12	7.5	10400	29700	160	200	240/850CAF1/W33X	-	866	1184	6.0	1410
850	1220	36	-	-	7.5	10400	297700	160	200	240/850CAF1	-	886	1184	6.0	1410
1180	1540	272	-	-	-	8350	29600	110	150	-	239/1180CAK	1216	1536	8.0	1350
1180	1540	272	24	12	7.5	9350	29600	110	150	-	239/1180CAKF1/W33X	1216	1536	8.0	1350
1180	1660	355	24	12	9.5	9350	29600	110	150	230/1180CAF1/W33X	-	1240	1600	6.0	2460

Basic dimensions mm				Basic load rating KN		Limiting speed r/min		Bearing numbers		Other dimentions mm				Abutment and fillet dimensions (mm)			Axial load factors				Weight kg
d	D	B	rsmin	Cr	Cor	Grease	Oil			d2	D1	b	k	da(min)	Da(max)	ra(max)	e	y1	y2	y0	Weight kg
1180	1420	180	6	5600	18000	150	190	238/1180CAKF1A/W20	-	1254	1349	-	9	1180	1450	5	0.11	6.28	9.35	6.14	577
1180	1420	180	6	5340	17200	150	190	238/1180CAF3A/W20	-	1254	1349	-	9	1180	1450	5	0.11	6.28	9.35	6.14	580
1180	1420	243	6	7700	27200	135	160	248/1180CA/W33	-	1250	1344	22.3	12	1180	1450	5	0.14	4.80	7.20	4.50	790
1180	1420	243	6	7700	27200	135	160	248/1180CAK30/W33	-	1250	1344	22.3	12	1180	1450	5	0.14	4.80	7.20	4.50	770
1180	1540	272	7.5	10290	29600	110	150	239/1180CAKF3/W33X	239/1180CAKF1/W33X	1296	1432	24	12	1216	1536	6	0.16	4.20	6.30	4.00	1350
1180	1540	272	7.5	10700	29600	110	150	239/1180CAF3/W33X	-	1296	1432	24	12	1216	1536	6	0.16	4.20	6.30	4.00	1390
1180	1540	355	7.5	13310	40000	110	150	249/1180CAF1/W33X	-	1290	1422	22.3	12	1216	1536	6	0.20	3.42	5.09	3.34	1772
1180	1540	355	7.5	13900	40000	110	150	249/1180CAK30F3/W33	-	1290	1422	22.3	12	1216	1536	6	0.20	3.42	5.09	3.34	1742
1180	1660	355	9.5	10290	29600	110	150	230/1180CAF1/W33X	-	1328	1509	24	12	1240	1600	8	0.20	3.42	5.09	3.34	2460
1250	1750	375	9.5	17500	44800	95	125	230/1250CA/W33	-	1412	1610	22.3	12	1285	1715	8	0.19	3.60	5.30	3.60	2850
1250	1750	375	9.5	17500	44800	95	125	230/1250CAK/W33	-	1412	1610	22.3	12	1285	1715	8	0.19	3.60	5.30	3.60	2760
1320	1600	280	6	9750	33400	85	115	248/1320CA/W33	-	1418	1513	22.3	12	1342	1578	5	0.15	4.50	6.70	4.50	1180
1320	1600	280	6	9750	33400	85	115	248/1320CA30/W33	-	1418	1513	22.3	12	1342	1578	5	0.15	4.50	6.70	4.50	1150
1320	1720	400	7.5	16000	49200	80	105	249/1320CA/W33	-	]446	1588	24	12	1350	1691	6	0.21	3.20	4.80	3.20	2510
1320	1720	400	7.5	16000	49200	80	105	249/1320CAK30/W33	-	1446	1588	24	12	1350	1691	6	0.21	3.20	4.80	3.20	2460
1320	1850	530	12	23200	63300	70	85	240/1320CAF3/W33T	-	1485	1662	40	25	1390	1765	11	0.25	2.70	4.00	2.60	4540
1400	1820	425	9.5	20000	58500	70	85	249/1400CAF3/W33	-	1528	1681	22.3	12	1452	1768	8	0.20	3.42	5.09	3.34	2920
1500	1820	315	7.5	12000	40000	65	83	248/1500CA/W33	-	1608	1710	24	12	1528	1792	6	0.15	4.50	6.70	4.50	1730
1500	1820	315	7.5	12000	40000	65	83	248/1500CAK30F3/W20	-	1608	1710	-	12	1528	1792	6	0.15	4.50	6.70	4.50	1700
1800	2180	375	9.5	17400	62800	62	70	248/1800CA/W33	-	1935	2058	24	12	1832	2145	8	0.15	4.50	6.70	4.50	2920
1800	2180	375	9.5	17400	62800	62	70	248/1800CAK30/W33	-	1935	2058	24	12	1832	2145	8	0.15	4.50	6.70	4.50	2870

ウェブメニュー

製品検索

言語

メニューを終了

卸売分割型自動調心ころ軸受

デミー

自動調心ころ軸受

分割型自動調心ころ軸受

製品詳細

分割型自動調心ころ軸受

振動用途用自動調心ころ軸受

分割型自動調心ころ軸受の紹介

お問い合わせ

住所

便利なリンク

ウェブメニュー

製品検索

言語

シェアする

メニューを終了

卸売 分割型自動調心ころ軸受

デミー

自動調心ころ軸受

分割型自動調心ころ軸受

製品詳細

自動調心ころ軸受

分割型自動調心ころ軸受

振動用途用自動調心ころ軸受

分割型自動調心ころ軸受の紹介

お問い合わせ

住所

便利なリンク

卸売分割型自動調心ころ軸受
